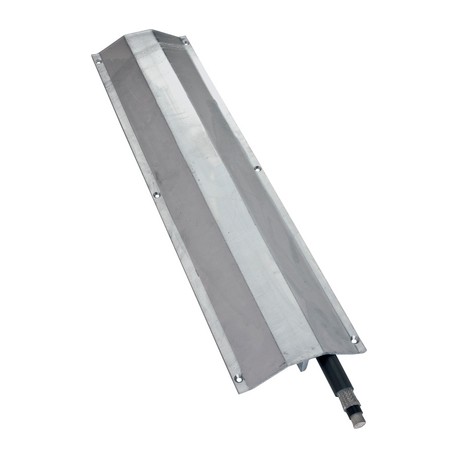

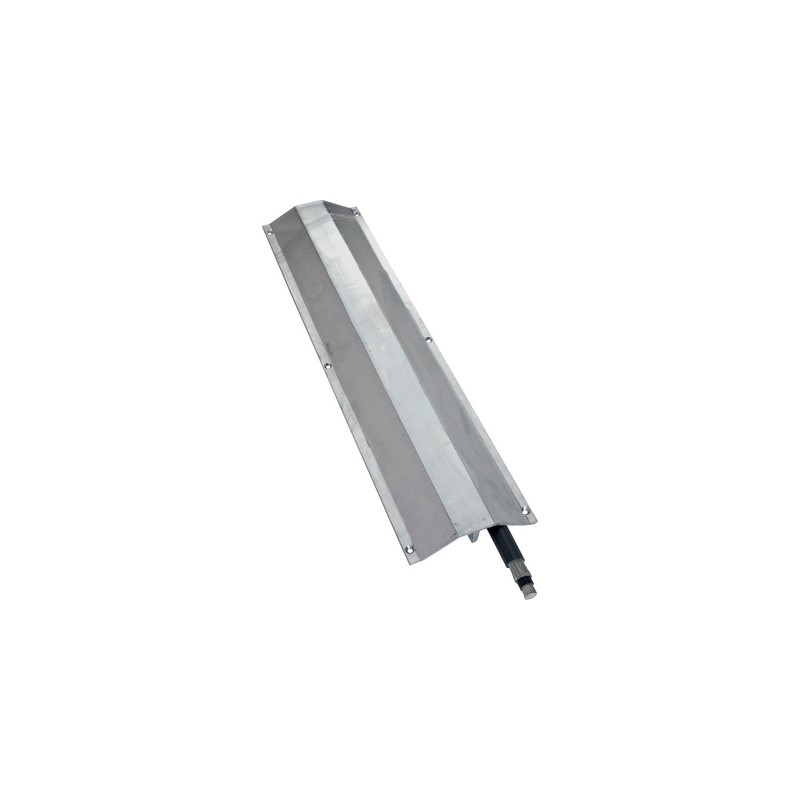

61717070 ST 3 LAPP STEEL CABLE DUCT ST 3

Benefits

• A central strength element strengthens and stiffens the design
• Point loads are thus distributed onto the floor
• The ST cable tunnel offers additional advantages in the area of building safety as it is flame-retardant and halogen-free.

Application range

• Protects cables laid on the ground against mechanical influences
• Can be fixed onto the floor by using countersunk screws

Product Make-up

• ST 1: A = 250, B = 230, C = 70, D = 5, E = 45
• Material thickness: 5 mm
• ST 2: A = 200, B = 182, C = 60, D = 4, E = 34,
• ST 3: A = 150, B = 134, C = 60, D = 4, E = 24, hole diameter = 6.6 mm

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000047
• ETIM 5.0 Class-Description: Cable tray/wide span cable tray

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000047
• ETIM 6.0 Class-Description: Cable tray/wide span cable tray

Note

• Max. loading capacity: 7 t

Material

• Steel, galvanized
• Fireproof
