55507125 SILVYN KSE-M 20x1,5/1 BK LAPP SILVYN KSE-M 20x1,5/1 BK

55507125

SILVYN KSE-M 20x1,5/1 BK

LAPP

10

SILVYN KSE-M 20x1,5/1 BK

SILVYN® KSE-M

More details


Protective hose systems > Screw connection for corrugated plastic hose

SILVYN cabling

* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total price: $137.27
Unit price: $13.73

Quantity Price
10+$13.73
20+$11.78
30+$10.90
40+$10.52
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲

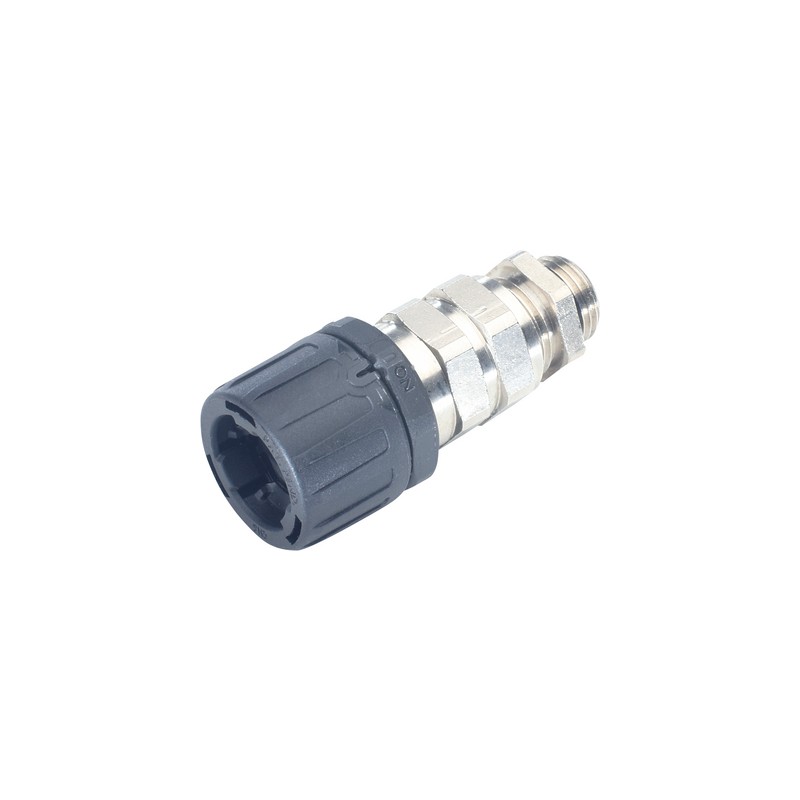

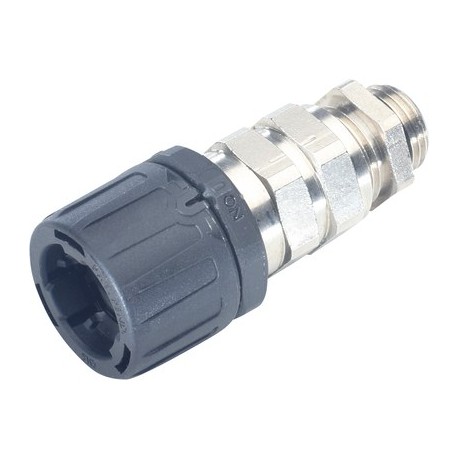

SILVYN® KSE-M - metric conduit fitting with integrated EMC screening for SILVYN® FPAS

Benefits

  • Fast assembly
  • Vibration protection
  • Additional cable strain relief
  • Additional cable sealing
  • Optimum screen connection (EMC)

Application range

  • In combination with protective conduit:
  • SILVYN® FPAS
  • Used in areas where screened cables and wires need to have additional protection

Product features

  • In black colour UV-resistant and weather-proofed
  • Removeable with a screwdriver

Norm references / Approvals

  • UL FILENUMBER E308201

Product Make-up

  • Metric connection thread
  • EMC cable gland
  • Upper part with integrated all-round toothing

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001176
  • ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001176
  • ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

Certifications

  • IEC EN 61386-23

On request

  • without EMC contacts

Colour delivered

  • Black (RAL 9005), UV-resistant

Material

  • Nickel-plated brass
    PA66
    Halogen-free

Protection rating

  • Conduit: IP66
    Cable: IP68

Temperature range

  • -30°C to +100°C

Datasheet - PDF

▲
Title: Size: Type:
55507125 SILVYN KSE-M 20x1,5/1 BK 55507125 EN_55507105.pdf 466 Kbytes 55507125 SILVYN KSE-M 20x1,5/1 BK 55507125 EN_55507105.pdf
