> LAPP>SILVYN cabling>55502369 SILVYN MPC 90° M 40X1,5 GY LAPP SILVYN MPC 90° M 40X1,5 GY
Previous Product Next Product
55502369 SILVYN MPC 90° M 40X1,5 GY LAPP SILVYN MPC 90° M 40X1,5 GY View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

55502369 SILVYN MPC 90° M 40X1,5 GY LAPP SILVYN MPC 90° M 40X1,5 GY

55502369

SILVYN MPC 90° M 40X1,5 GY

LAPP

2

SILVYN MPC 90° M 40X1,5 GY

SILVYN® MPC 90° M

More details


SILVYN cabling

* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total price: $24.80
Unit price: $12.40

Quantity Price
2+$12.40
4+$12.40
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲

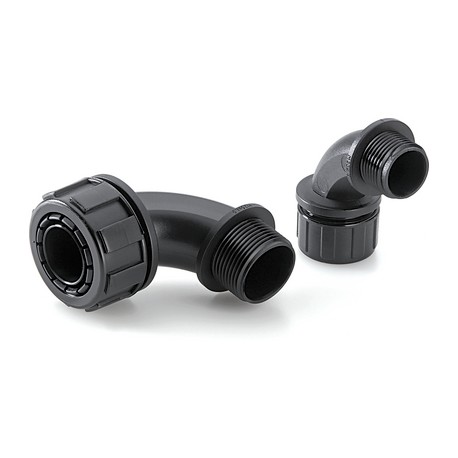

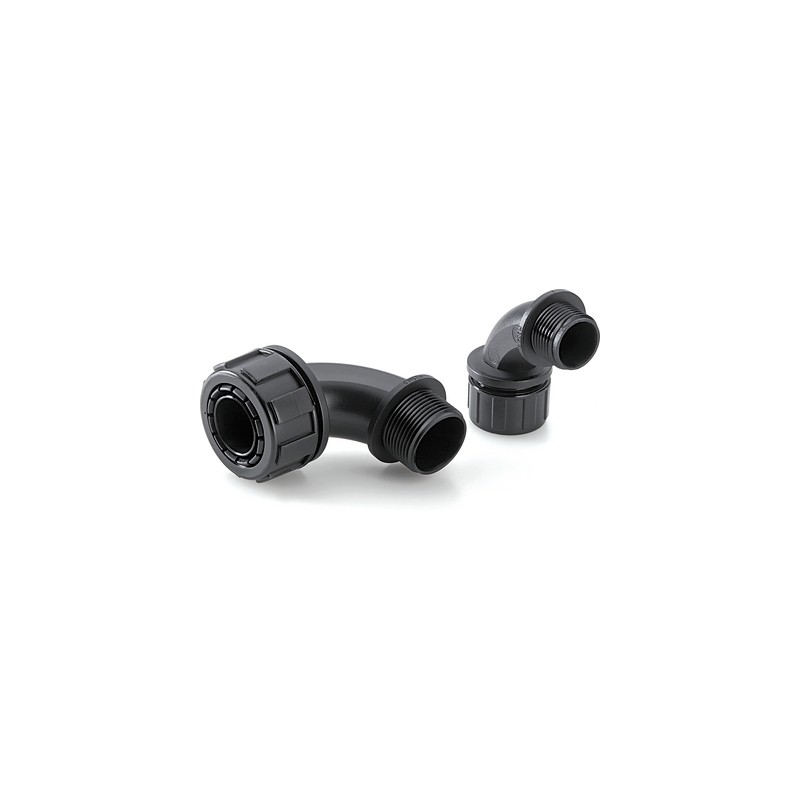

SILVYN® MPC 90° M - conduit fitting for use with SILVYN® EL/ELU/ELO/ELT

Benefits

  • All-purpose
  • Fast and easy assembly
  • 90° elbow allows easy installation

Application range

  • In combination with protective conduit:
  • SILVYN® EL/ELU/ELO/ELT/ELR (helically formed and smooth conduits)

Product features

  • Dust protection
  • Moisture-protection
  • Ensures high tensile strength and mechanical protection

Norm references / Approvals

  • UL FILENUMBER E308201

Product Make-up

  • Metric connection thread
  • 90° elbow with integrated conduit connection

Note

  • PG threaded versions are to be found in the online catalogue

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001178
  • ETIM 5.0 Class-Description: Screw connection for protective plastic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001178
  • ETIM 6.0 Class-Description: Screw connection for protective plastic hose

Certifications

  • IEC EN 61386-23

Colour delivered

  • Black (RAL 9005), UV-resistant
  • Grey, RAL 7001

Material

  • PA66
    Halogen-free

Protection rating

  • IP 65 with helically formed conduits
    IP 67 + IP 68 (2bar) with smooth conduits

Temperature range

  • -40°C to +120°C

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE LAPP EN.pdf 58 Mbytes
55502369 SILVYN MPC 90° M 40X1,5 GY 55502369 EN_55502367.pdf 370 Kbytes 55502369 SILVYN MPC 90° M 40X1,5 GY 55502369 EN_55502367.pdf
