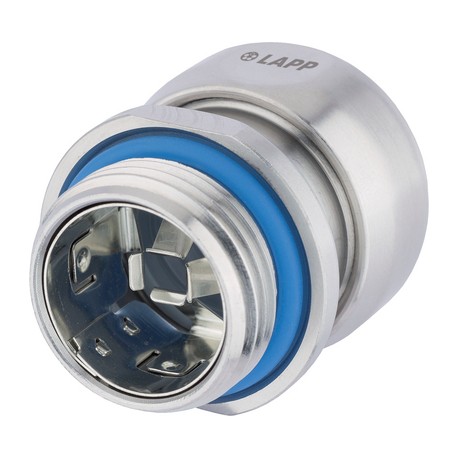

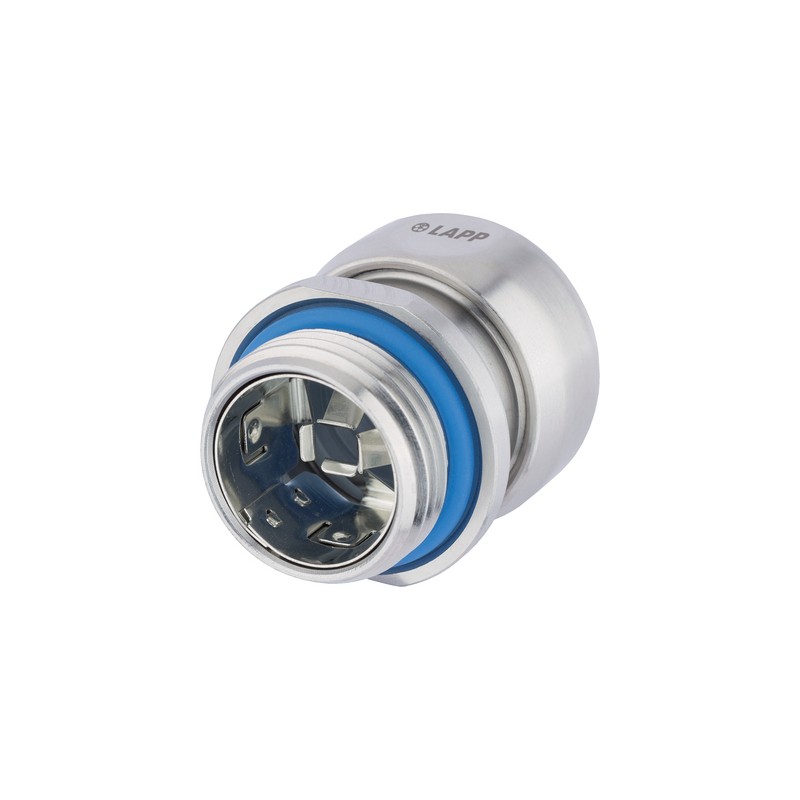

53806726 SKINTOP INOX SC M 25 LAPP SKINTOP INOX SC M 25

Benefits

• Smooth surfaces - no edges
• Compact design
• Wide, variable clamping ranges
• Low-resistance screen contact, optimum EMC protection
• Highly conductive, flexible EMC contact for clamping various screen diameters

Application range

• For EMC-compliant earthing of the copper braiding
• Pharmaceutical industry
• Food industry (product-free zone, splash zone)
• Onshore and offshore applications
• Bottling plants and breweries

Norm references / Approvals

• DIN EN ISO 14159
  Security of machinery – Hygienic requirements for the design of machinery
• DIN EN 1672-2
  Guideline for the design of machinery
• ECOLAB®
  Industry standard in the field of professional cleaning and disinfection in the food and beverage industry
• NSF/ANSI 169
  Hygienic design for machinery and components

Product Make-up

• Metric connection thread acc. to DIN EN 60423
• Basis for technical information DIN IEC 62444

Note

• SKINDICHT® SM-PE-M counter nut should be used to ensure optimum contact with painted, anodised or powder-coated housings

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000441
• ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000441
• ETIM 6.0 Class-Description: Cable screw gland

Caution

• Refer to the instruction leaflet for the installation dimensions and torques

Material

• Body: stainless steel V4A
  (1.4404 / 316L)
  Insert: polyamide
  Sealing: silicone
  O-Ring: silicone
• Halogen-free

Protection rating

• IP 68 - 10 bar (M12 - M20)
  IP 68 - 5 bar (M25 - M50)
  IP 69
  NEMA Type 1, 2, 4x, 6, 12

Temperature range

• -40°C to +100°C
