LAPPSKINTOP cabling53440970 SKINTOP DIX-M 32 FIELDBUS LAPP SKINTOP DIX-M 32165 slotted

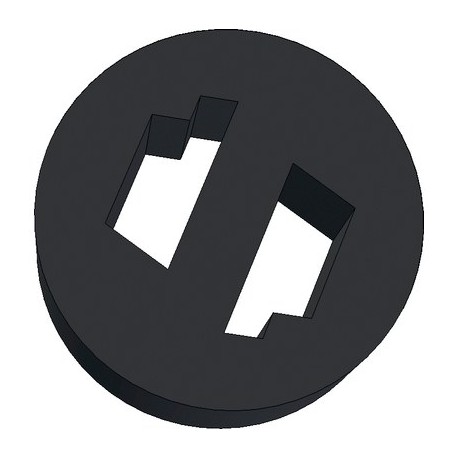

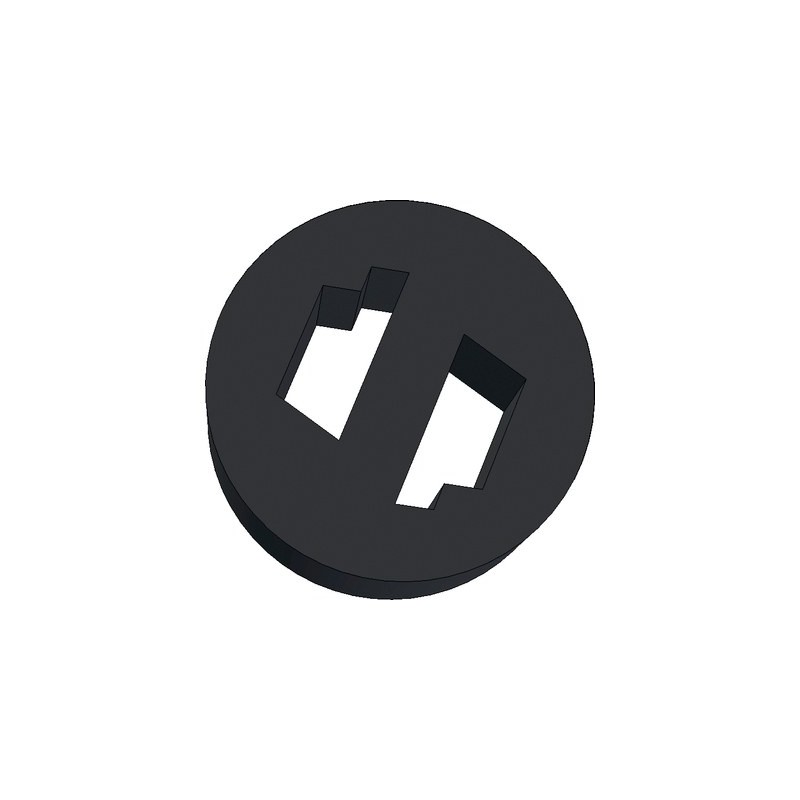

LAPP 53440970 53440970 SKINTOP DIX-M 32 FIELDBUS - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

53440970 SKINTOP DIX-M 32 FIELDBUS LAPP SKINTOP DIX-M 32165 slotted

Reference: 53440970

Catalog Number: SKINTOP DIX-M 32 FIELDBUS

Manufacturer: LAPP

Description:

SKINTOP DIX-M 32165 slotted
SKINTOP® DIX-M AUTOMATION

Categories:

  • Cable and wire entry systems > Plug for cable screw gland
  • LAPP > SKINTOP cabling

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 76,39 €

Unit Price: 1,5278 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1 week.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

SKINTOP® DIX-M AUTOMATION, multiple sealing insert for optimal sealing when using pre-assembled cables

New versions of the slotted sealing inserts cover pre-assembled cables with an outside diameter of 3-10 mm

Benefits

  • Optimal seal when using AS-I bus cables
  • Easy insertion of pre-assembled cables (with fieldbus or RJ-45 connector) by slotted sealing
  • Optimum strain relief

Application range

  • For use in SKINTOP® cable glands
  • Can be used instead of the inner sealing insert
  • Control cabinets
  • Control panels
  • Automation technology

Product Make-up

  • Precise cut for AS-I bus cables
  • Seal with hole and cut for easy insertion of pre-assembled field bus cables

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000032
  • ETIM 5.0 Class-Description: Plug for cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000032
  • ETIM 6.0 Class-Description: Plug for cable screw gland

On request

  • Special shapes

Colour delivered

  • Black, RAL 9005

Material

  • NBR

Protection rating

  • IP 54
  • IP 66 and IP 68 - 5 bar, 30 min (only applies to slotted DIX inserts if the specified clamping range is observed)

Temperature range

  • -40°C to +100°C

DATASHEET - PDF

Title
Size
Type
53440970 53440970 EN_53440970.pdf
610 Kbytes
