LAPPSKINTOP cabling53325250 SKINTOP DIX-M 25250 LAPP SKINTOP DIX-M 25250

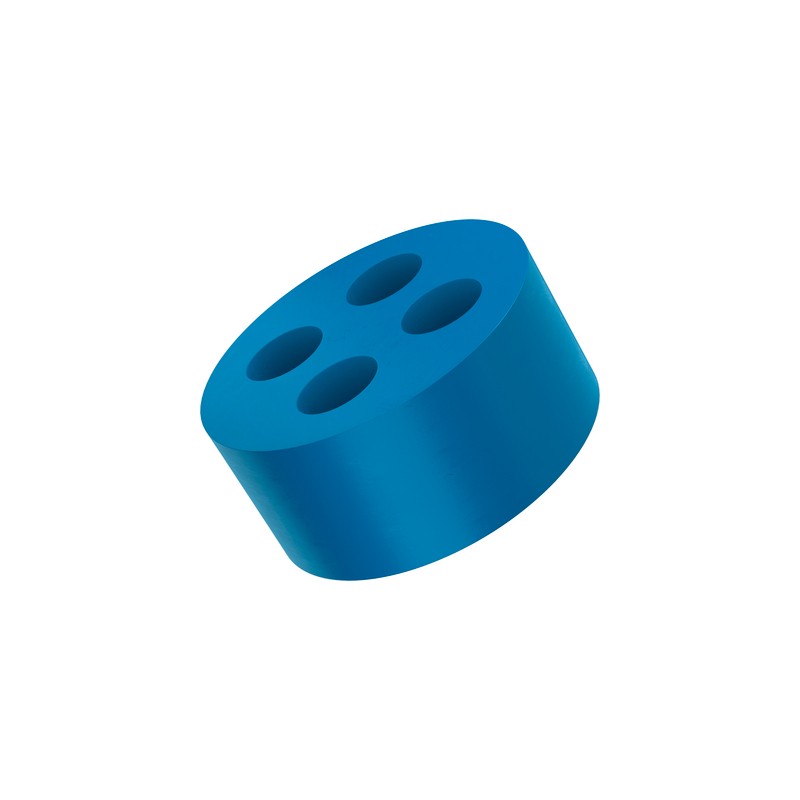

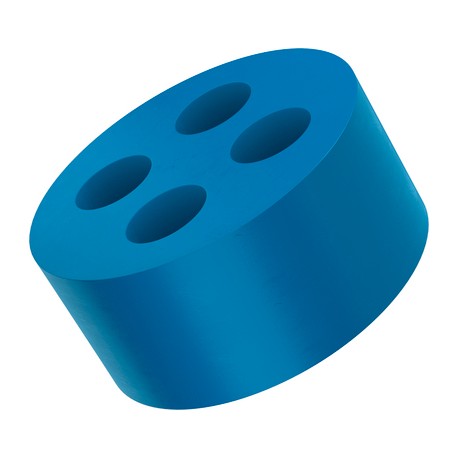

LAPP 53325250 53325250 SKINTOP DIX-M 25250 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

53325250 SKINTOP DIX-M 25250 LAPP SKINTOP DIX-M 25250

Reference: 53325250

Catalog Number: SKINTOP DIX-M 25250

Manufacturer: LAPP

Description:

SKINTOP DIX-M 25250
SKINTOP® DIX-M

Categories:

  • Cable and wire entry systems > Plug for cable screw gland
  • LAPP > SKINTOP cabling

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 46,49 €

Unit Price: 0,9298 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1 week.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

SKINTOP® DIX-M, NBR multiple sealing inserts, higher packing density allows smaller part construction, easy insertion of several cables

Benefits

  • Easy insertion of several cables into one gland
  • Higher packing density allows smaller part construction

Application range

  • For use in SKINTOP® cable glands
  • A sealing ring with several holes is used in place of the inner sealing insert
  • SKINTOP® DIX-M FKM is resistant to oil, water, alkaline solutions, acids, solvents etc.

Note

  • IP 68 can be achieved when all openings are closed and all bores are optimally occupied, i.e. when using cables with nominal diameter and/or SKINTOP® DIX-DV sealing plugs

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000032
  • ETIM 5.0 Class-Description: Plug for cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000032
  • ETIM 6.0 Class-Description: Plug for cable screw gland

On request

  • Special shapes

Colour delivered

  • Black, RAL 9005

Material

  • NBR
  • FKM

Protection rating

  • IP 54

Temperature range

  • -50°C to +100°C

DATASHEET - PDF

Title
Size
Type
53325250 53325250 EN_53325540.pdf
301 Kbytes
PDF CATALOGUE LAPP EN
69 Mbytes
