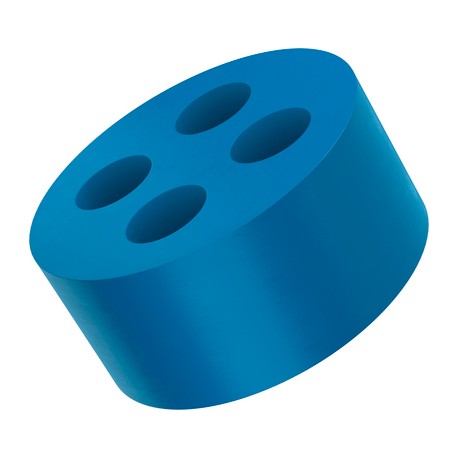

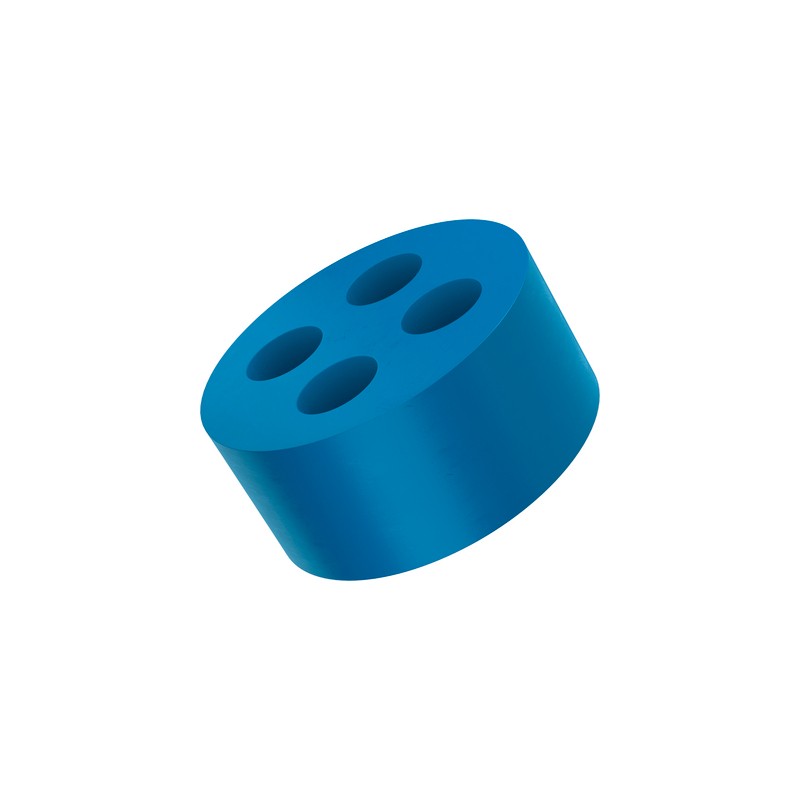

53320260 SKINTOP DIX-M 20260 LAPP SKINTOP DIX-M 20260

Benefits

• Easy insertion of several cables into one gland
• Higher packing density allows smaller part construction

Application range

• For use in SKINTOP® cable glands
• A sealing ring with several holes is used in place of the inner sealing insert
• The silicone versions are resistant to ECOLAB cleaning agents and disinfectants. They are compliant with FDA 21 CFR 177.2600 and therefore permitted for the food and beverage industry. With their blue color, they can be easily distinguished from food.
• The FKM versions are resistant to aggressive media such as alkalis, acids and solvents.

Note

• IP 68 can be achieved when all openings are closed and all bores are optimally occupied, i.e. when using cables with nominal diameter and/or SKINTOP® DIX-DV sealing plugs

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000032
• ETIM 5.0 Class-Description: Plug for cable screw gland

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000032
• ETIM 6.0 Class-Description: Plug for cable screw gland

On request

• Special shapes

Colour delivered

• Black, RAL 9005
• Blue, RAL 5017

Material

• NBR, FKM, silicone

Protection rating

• IP 54

Temperature range

• NBR: -40°C bis +100°C
  FKM: -20°C bis +200°C
  silicone: -50°C bis +200°C
