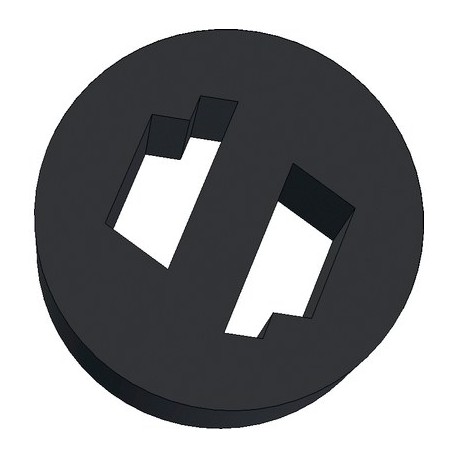

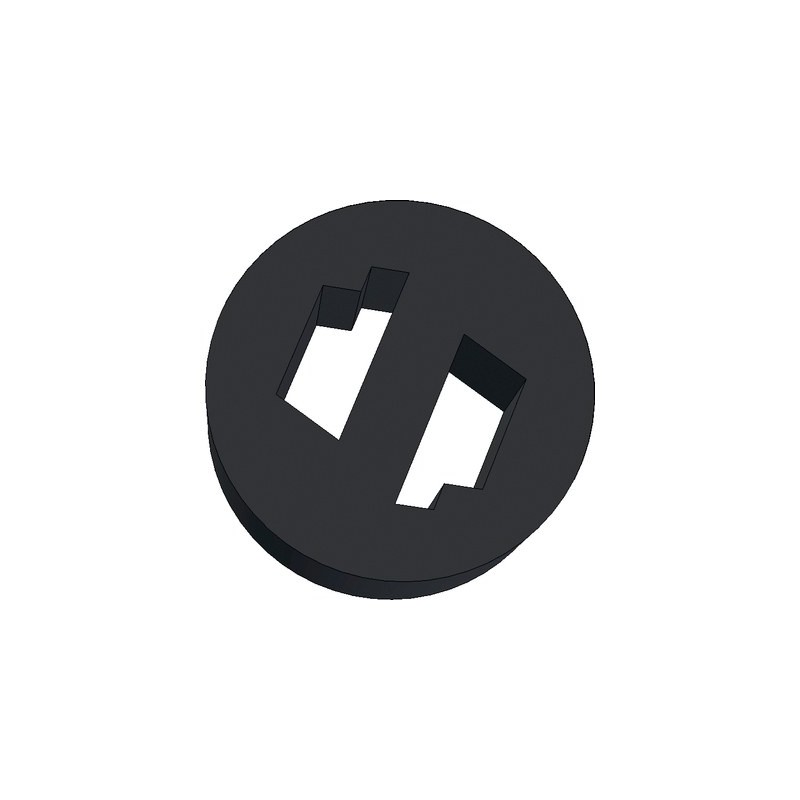

53310444 SKINTOP DIX-M 40310 SLOTTED LAPP SKINTOP DIX-M 40310 SLOTTED
53310444
SKINTOP DIX-M 40310 SLOTTED
LAPP
25
SKINTOP DIX-M 40310 SLOTTED
SKINTOP DIX-M 40310 slotted
SKINTOP® DIX-M AUTOMATION
Cable and wire entry systems > Plug for cable screw gland
SKINTOP cabling
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲SKINTOP® DIX-M AUTOMATION, multiple sealing insert for optimal sealing when using pre-assembled cables
Benefits
- Optimal seal when using AS-I bus cables
- Easy insertion of pre-assembled cables (with fieldbus or RJ-45 connector) by slotted sealing
- Optimum strain relief
Application range
- For use in SKINTOP® cable glands
- Can be used instead of the inner sealing insert
- Control cabinets
- Control panels
- Automation technology
Product Make-up
- Precise cut for AS-I bus cables
- Seal with hole and cut for easy insertion of pre-assembled field bus cables
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000032
- ETIM 5.0 Class-Description: Plug for cable screw gland
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000032
- ETIM 6.0 Class-Description: Plug for cable screw gland
On request
- Special shapes
Colour delivered
- Black, RAL 9005
Material
- NBR
Protection rating
- IP 54
- IP 66 and IP 68 - 5 bar, 30 min (only applies to slotted DIX inserts if the specified clamping range is observed)
Temperature range
- -40°C to +100°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 58 Mbytes |
|
| 53310444 SKINTOP DIX-M 40310 SLOTTED 53310444 EN_53310444.pdf | 610 Kbytes |
|
