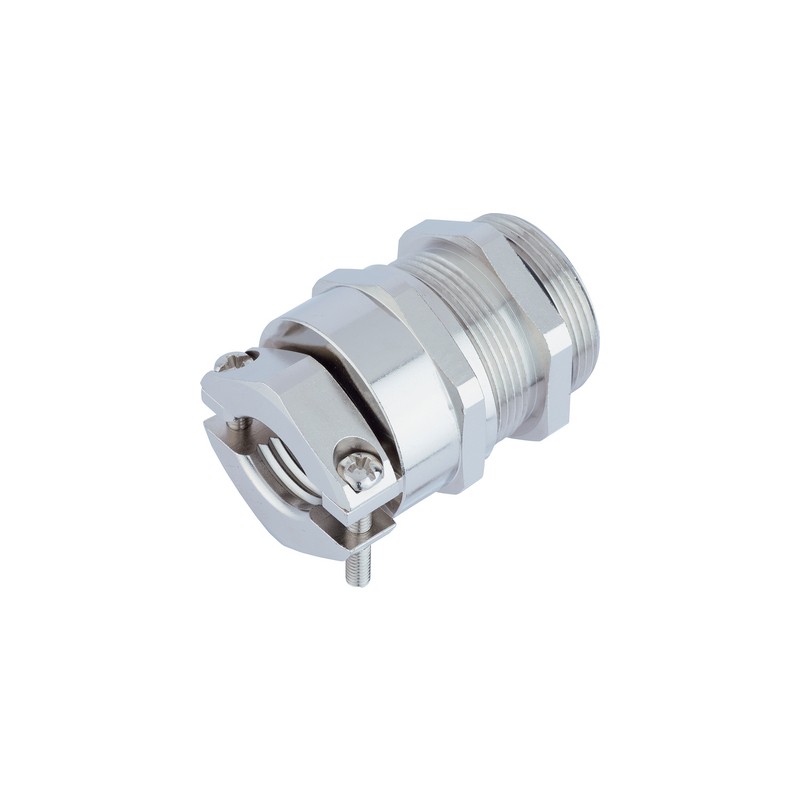

LAPP 53113220 53113220 SKINTOP GRIP M32 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

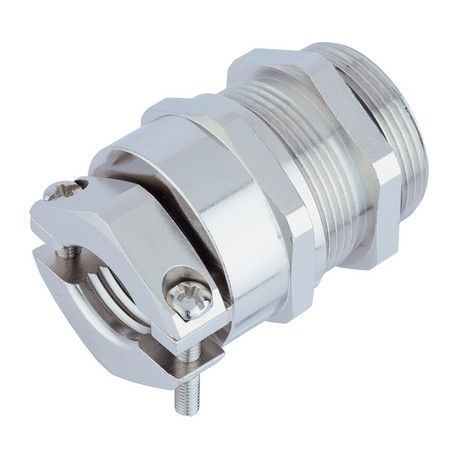

53113220 SKINTOP GRIP M32 LAPP SKINTOP GRIP M32

Reference: 53113220

Catalog Number: SKINTOP GRIP M32

Manufacturer: LAPP

Description:

SKINTOP GRIP M32
SKINTOP

Categories:

  • Cable and wire entry systems > Cable gland
  • LAPP > SKINTOP cabling

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 446,35 €

Unit Price: 17,854 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1 week.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

SKINTOP® GRIP-M Saddle-clamp strain relief cable gland for harsh application conditions

New: now also available with long connection thread

Benefits

  • Protection against kinking and rip out of cables
  • High strain relief
  • For high mechanical stress
  • Reliable bending and anti-kink protection

Application range

  • Saddle clamp strain relief gland for harsh application conditions
  • Portable equipment
  • Machines and systems on building sites
  • Crane and conveying machinery
  • Charging infrastructure for EV´s

Norm references / Approvals

  • Metric connection thread acc. to DIN EN 60423
  • Basis for technical information DIN IEC 62444
  • Tested according to IEC 62196-1: Conductive charging of electric vehicles

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Caution

  • Refer to the instruction leaflet for the installation dimensions and torques

Material

  • Body: nickel-plated brass
    Insert: polyamide
    Sealing: CR
    O-ring: NBR

Protection rating

  • IP 68 - 10 bar
  • IP 69

Temperature range

  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C to +100°C
