LAPPSKINTOP cabling53113180 SKINTOP GRIP M16 LAPP SKINTOP GRIP M16

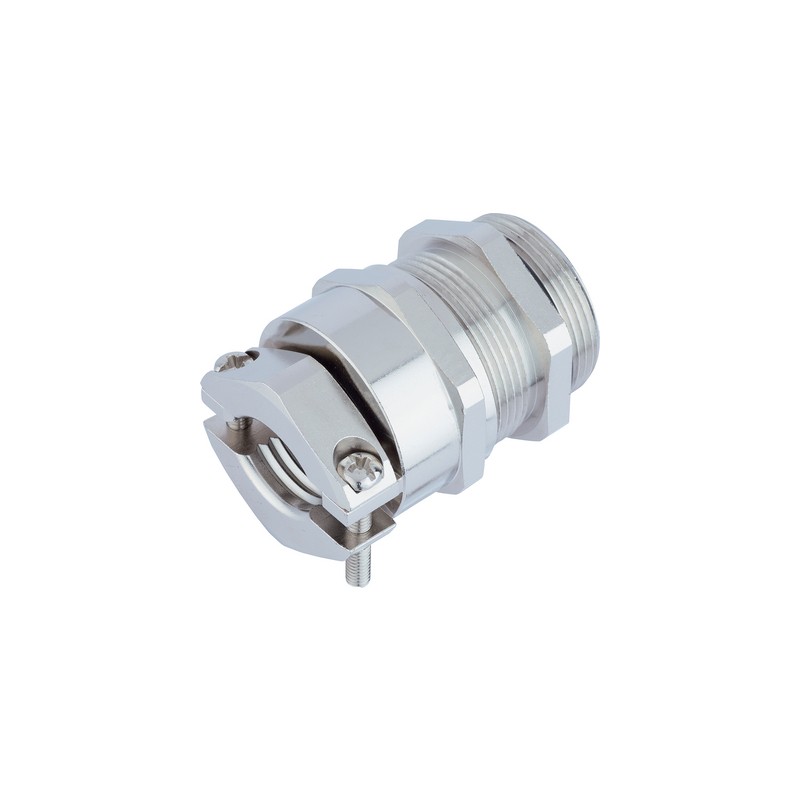

LAPP 53113180 53113180 SKINTOP GRIP M16 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

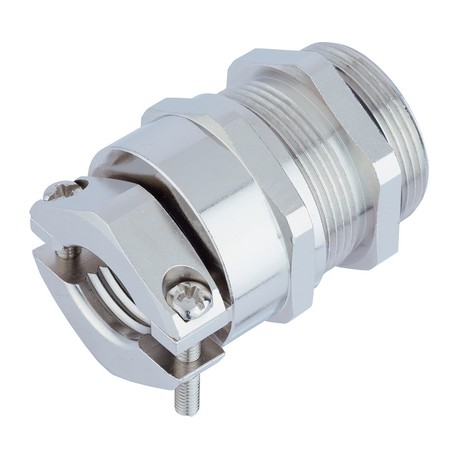

53113180 SKINTOP GRIP M16 LAPP SKINTOP GRIP M16

Reference: 53113180

Catalog Number: SKINTOP GRIP M16

Manufacturer: LAPP

Description:

SKINTOP GRIP M16
SKINTOP

Categories:

  • Cable and wire entry systems > Cable gland
  • LAPP > SKINTOP cabling

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • Reviews
Guarantee, repair and return.

Total: 236,94 €

Unit Price: 9,478 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1 week.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

SKINTOP® GRIP-M, cable hoists with traction discharge clamp for severe conditions

NEW: now also with XL connection nut

proceeds

  • Protection against bending and starting cables
  • High traction discharge
  • Withstands large mechanical forces
  • reliable flex and twist protection

Scope of use

  • Double stirrup traction discharge cable presses for extreme use conditions
  • Mobile equipment
  • Machinery and systems on site
  • Crane and transport machinery
  • Charging infrastructure for electric vehicles

Reference Standards / Approvals

  • Metric nut according to DIN EN 60423
  • Based on technical information from DIN IEC 62444
  • Tested according to IEC 62196-1: conductive charging of electric vehicles

ETS Classification 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 class description: cable presses

ETTIM Rating 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable presses

Notice

  • Installation dimensions and tightening torques, refer to the instruction manual

Material

  • Body: nickel-plated brass Insert: polyamide Gasket: CR O-ring: NBR

Degree of protection:

  • IP 68 - 10 bar
  • IP 69

Temperature range

  • Mobile: -25°C to +100°C
  • Static: -40°C to +100°C
