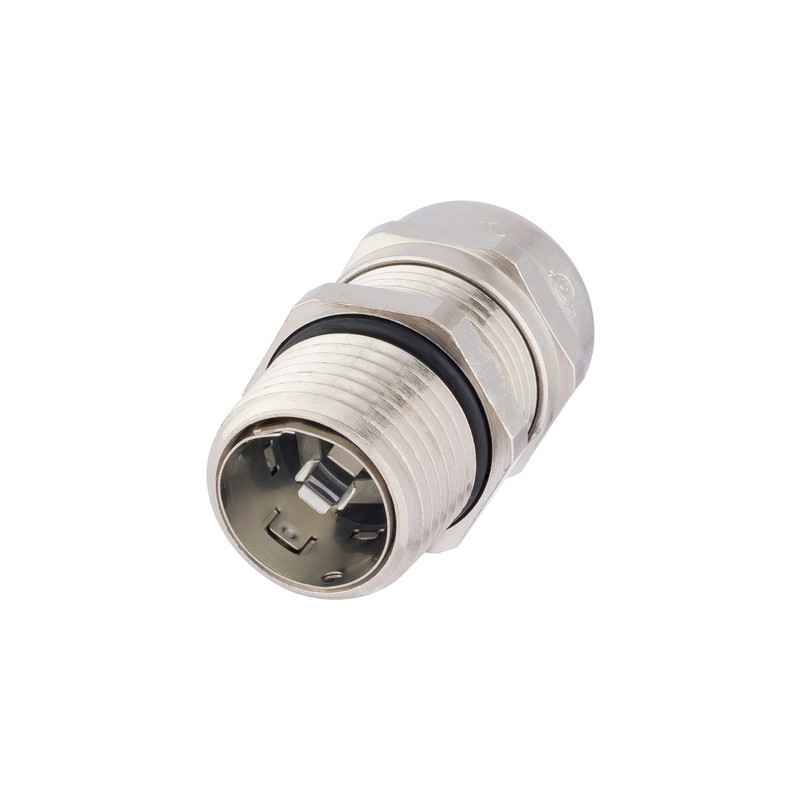

LAPP 53112940 53112940 SKINTOP MS-SC NPT 1" - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

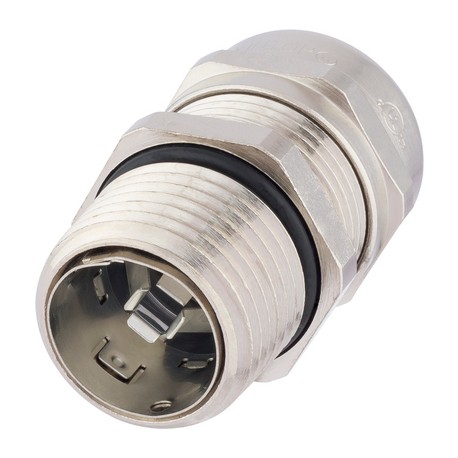

53112940 SKINTOP MS-SC NPT 1" LAPP SKINTOP MS-SC NPT 1"

Reference: 53112940

Catalog Number: SKINTOP MS-SC NPT 1"

Manufacturer: LAPP

Description:

SKINTOP MS-SC NPT 1"
SKINTOP® MS-SC NPT

Categories:

  • Cable and wire entry systems > Cable gland
  • LAPP > SKINTOP cabling

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 254,10 €

Unit Price: 10,164 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1 week.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

SKINTOP® MS-SC NPT, brass cable gland with highly conductive, flexible EMC contact, for cables with and without inner sheath

Benefits

  • Low-resistance screen contact, optimum EMC protection
  • Suitable for cables with and without inner sheath
  • Also suitable for continuing the cable screen to another connection
  • Highly conductive, flexible EMC contact for clamping various screen diameters
  • Few operation steps, easy to assemble

Application range

  • For EMC-compliant earthing of the copper braiding
  • Automation technology
  • Telecommunication
  • Measurement and control technology
  • Industrial machinery and plant engineering

Norm references / Approvals

  • UL File Nr. E79903

Product Make-up

  • NPT connection thread acc. to ASME B1.20.1 - 2013

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Material

  • Body: nickel-plated brass
    Insert: polyamide
    Sealing: CR
    O-ring: NBR

Protection rating

  • IP 68 - 10 bar
  • NEMA Type 1, 4x, 6, 12

Temperature range

  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C up to +100°C

DATASHEET - PDF
