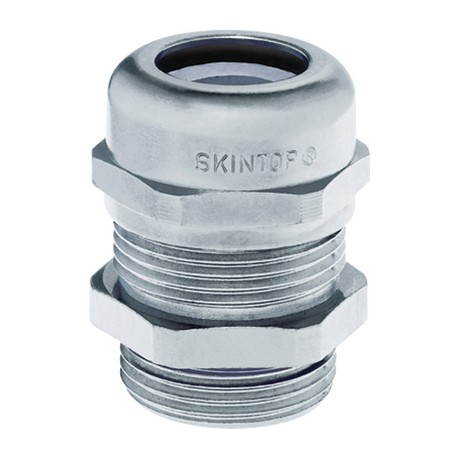

53112110 SKINTOP MSR-M 16x1,5 LAPP SKINTOP MSR-M 16x1,5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

53112110 SKINTOP MSR-M 16x1,5 LAPP SKINTOP MSR-M 16x1,5

53112110

SKINTOP MSR-M 16x1,5

LAPP

100

SKINTOP MSR-M 16x1,5

SKINTOP® MSR-M

More details


Cable and wire entry systems > Cable gland

SKINTOP cabling

* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total price: $249.27
Unit price: $2.49

Quantity Price
100+$2.49
200+$2.26
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲

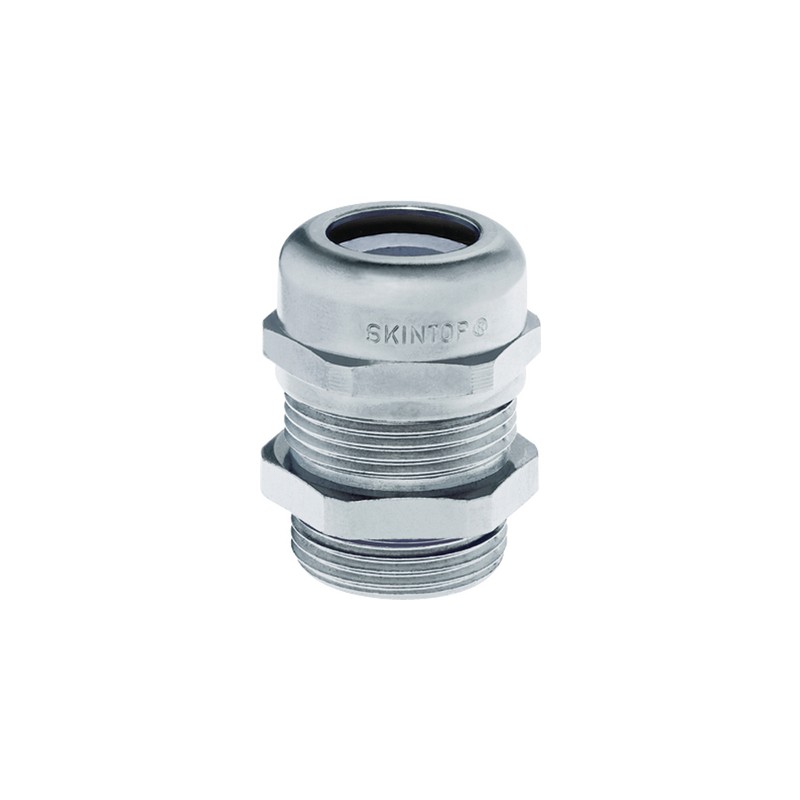

SKINTOP® MSR-M, brass cable gland with reducing seal insert, in areas where mechanical and chemical stability are critical

  • SKINTOP® MSR-M 75 x 1.5 with innovative double lamella gasket for easier assembling of cables with large diameters.
  • With IP69 approval! Proven to withstand the most demanding cleaning procedures for industrial machinery with high-pressure cleaners and hot water!

Benefits

  • Maximum reliability
  • Optimum strain relief
  • Wide, variable clamping ranges

Application range

  • With reducing seal insert, to seal cables with smaller outer diameters

Norm references / Approvals

  • UL File Nr. E79903

Product Make-up

  • Metric connection thread acc. to DIN EN 60423
  • Basis for technical information DIN IEC 62444

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Caution

  • Refer to Appendix T21 for the installation dimensions and torques

Certifications

  • VDE, UL and DNV approval available up to size M75x1,5

Material

  • Body: nickel-plated brass
    Insert: polyamide
    Sealing: CR
    O-ring: NBR

Protection rating

  • IP 68 - 10 bar
    IP 69 (M12 - M63)
    NEMA Type 1, 4x, 6, 12

Temperature range

  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C to +100°C
