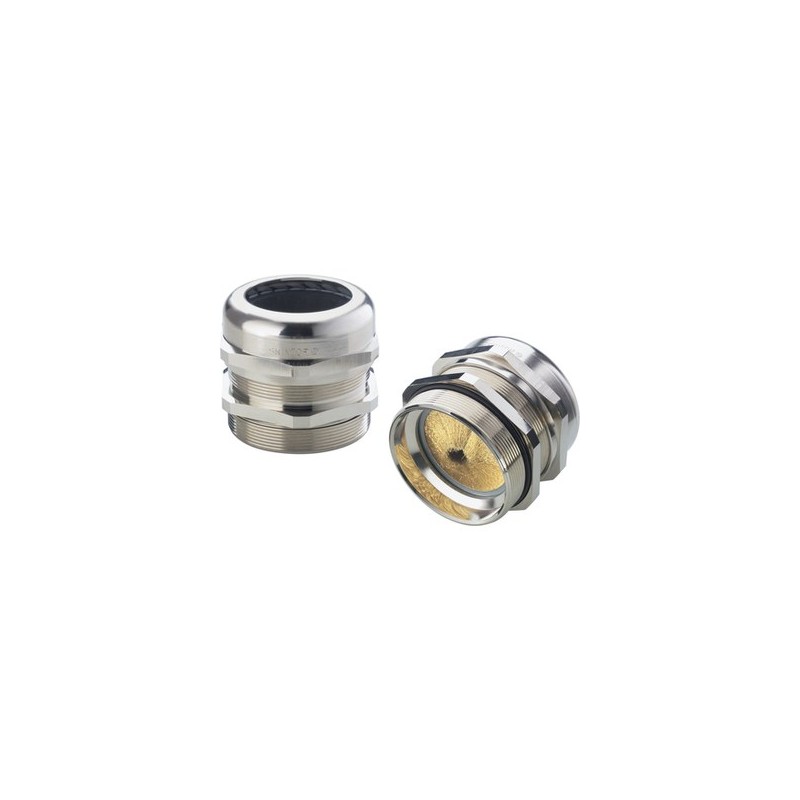

LAPP 53112087 53112087 SKINTOP MS-NPT BRUSH 2" plus - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

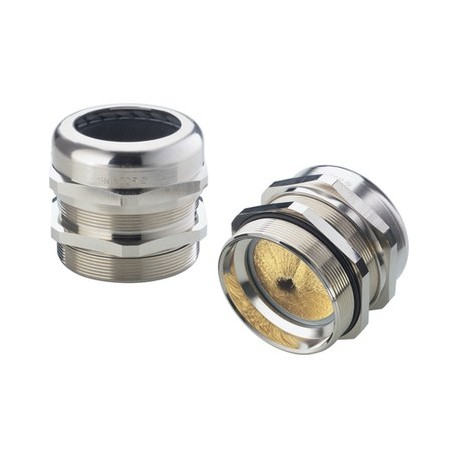

53112087 SKINTOP MS-NPT BRUSH 2" plus LAPP Cable gland

Reference: 53112087

Catalog Number: SKINTOP MS-NPT BRUSH 2" plus

Manufacturer: LAPP

Description:

SKINTOP MS-NPT BRUSH 2" plus

Categories:

  • Cable and wire entry systems > Cable gland
  • LAPP > SKINTOP cabling

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

SKINTOP® MS-NPT BRUSH, uncomplicated brass cable gland with fast screen contact and maximum assembly freedom, NPT connection thread

Benefits

  • Faster, easier screen contact
  • Optimum, low-resistance 360° screen contact
  • Faster than any other comparable system
  • Uncomplicated and reliable
  • Maximum assembly freedom during adjustment

Application range

  • For EMC-compliant earthing of the copper braiding, or for cables with copper shaft sheath
  • Automation technology
  • Conveyor technology
  • High-power drives
  • Frequency converters

Norm references / Approvals

  • UL File Nr. E79903

Product Make-up

  • NPT connection thread acc. to ASME B1.20.1 - 2013

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Material

  • Body: nickel-plated brass
    Cap nut: nickel-plated brass
    Insert: polyamide
    EMC brush: brass wire
    Sealing ring: elastomer
    O-ring: elastomer

Protection rating

  • IP 68 - 10 bar

Temperature range

  • Dynamic: -25°C up to + 100°C
  • Fixed: -40°C up to +100°C
