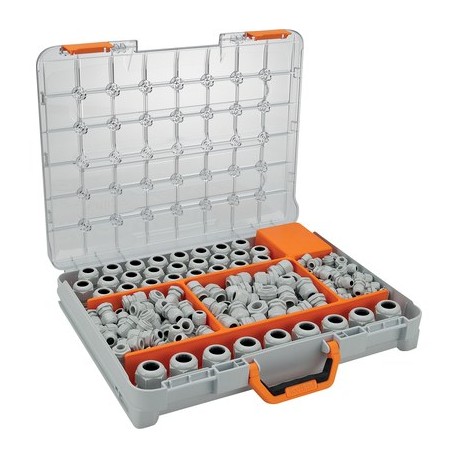

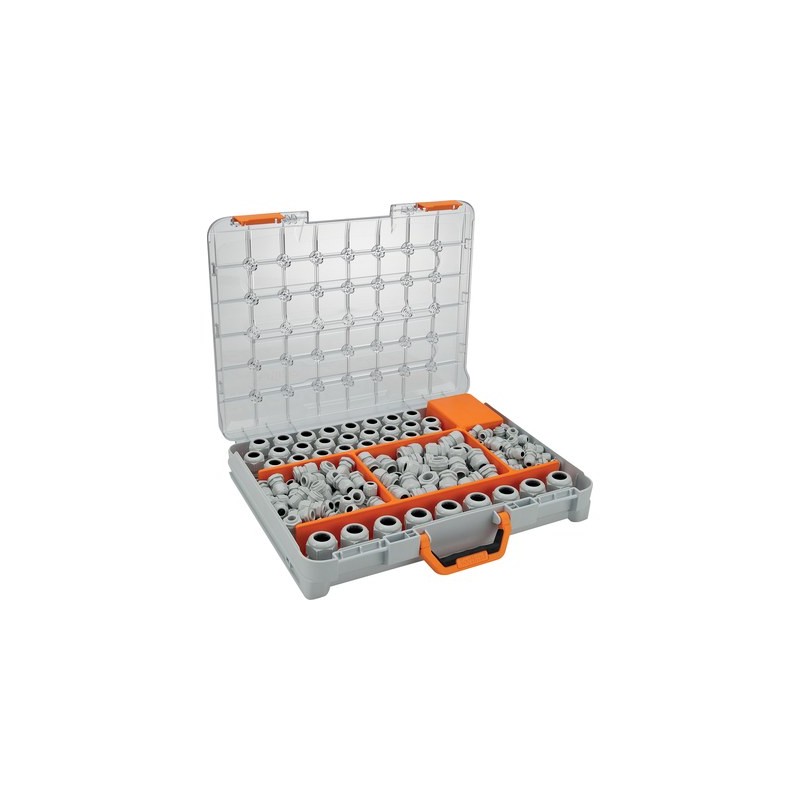

53110030 SKINTOP ST-M Sortimo T-BOXX LAPP SKINTOP ST-M Sortimo T-BOXX

Benefits

• High oil-resistance for maximum reliability
• Wide, variable clamping ranges
• Permanent vibration protection
• Optimum strain relief

Application range

• Control cabinet manufacturing
• Automation technology
• Measurement, control and electrical applications
• Air-conditioning technology

Product features

• Optimal order in the practical SORTIMO® T-BOXX
• Small packaging unit, wide variety
• Light and robust, shock- and impact-resistant polypropylene case
• Two sturdy locks - ideal for mounting use e.g. building site

Norm references / Approvals

• UL File Nr. E79903

Product Make-up

• Metric connection thread acc. to DIN EN 60423
• Basis for technical information DIN IEC 62444

Note

• To refill standard packaging units are available

Included

• Delivery in SORTIMO® T-BOXX
• Counter nut SKINTOP® GMP-GL-M included
• Assembly instructions
• SKINTOP® ST-M M12 / 50 pieces
  (Art.Nr. 53111400)
  SKINTOP® ST-M M16 / 50 pieces
  (Art.Nr. 53111410)
  SKINTOP® ST-M M20 / 40 pieces
  (Art.Nr. 53111420)
  SKINTOP® ST-M M25 / 25 pieces
  (Art.Nr. 53111430)
  SKINTOP® ST-M M32 / 9 pieces
  (Art.Nr. 53111440)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000441
• ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000441
• ETIM 6.0 Class-Description: Cable screw gland

Caution

• Refer to Appendix T21 for the installation dimensions and torques

Colour delivered

• Light grey (RAL 7035)

Material

• Body: Polyamide
  Seal: CR

Tests

• GGVS: TÜ.EGG.020-95

Protection rating

• IP 66
  IP 68 - 5 bar
  IP 69
• NEMA Type 1, 12

Temperature range

• Fixed: -40°C to +100°C
• Dynamic: -20°C to +100°C
