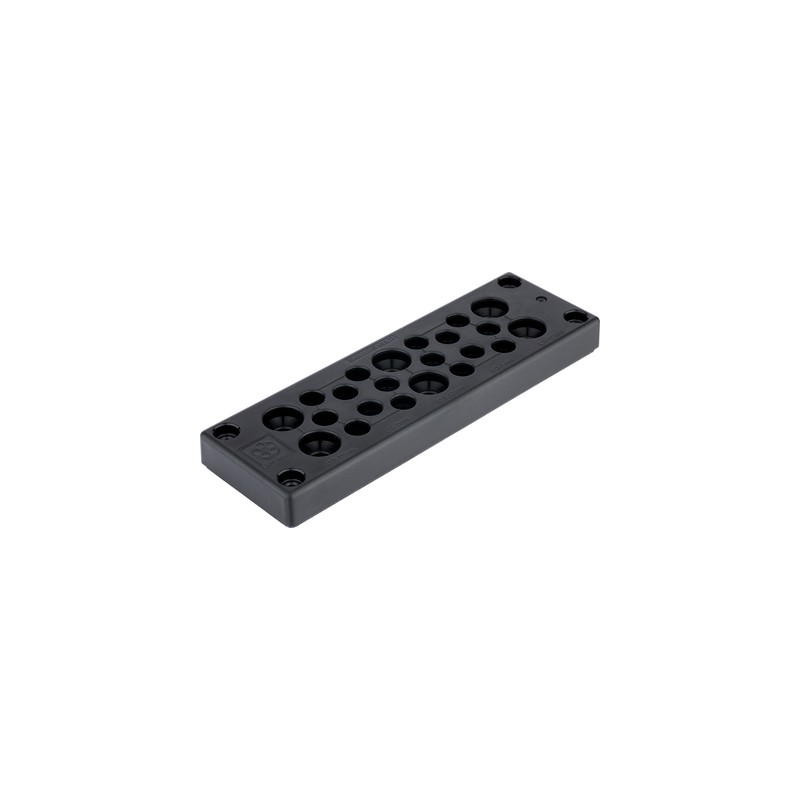

52220085 LAPP SKINTOP MULTI Version 4

Benefits

• Large clamping range of 4 mm and AS-I BUS entry system by elastic gel technology with innovative membrane technology
• Easy installation of the cables even for high packing density
• Optimum strain relief at the entire cable bundle
• Error reduction through clear assignment of cable to be installed by a clear marker of implementing points
• Not used bushings remain securely sealed

Application range

• Used in areas where a lot of cables and wires need to be inserted into housings with minimum space requirements
• For not harnessed cables and media hoses
• Apparatus and switch cabinet construction
• Automation technology

Product features

• Cables can be inserted directly without using a pricking awl
• Integrated seal for the cable & housing (captive)
• Halogen-free and silicone-free
• UV-, ozone- and oil-resistant
• The adhesive gel provides a very easy positioning at the enclosure during the assembling

Norm references / Approvals

• UL 50, UL 50E, CSA C22.2
• UL 508A for Industrial Control Panels
• UL File No. E349737

Product Make-up

• For cut-outs for 24-pin industrial connectors (36 x 112 mm)

Included

• SKINTOP® MULTI including mounting material

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000240
• ETIM 5.0 Class-Description: Cable entry

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000240
• ETIM 6.0 Class-Description: Cable entry

Certifications

• UL File No. E349737
• Fire behaviour acc. to UL94 V-2
  Hazard Level HL 2 acc. to EN 45545-2

Note

• Individual hole configuration on request

Material

• Frame: Polycarbonat
  Sealing: Gel

Protection rating

• IP 68

Temperature range

• -30°C to +110°C
