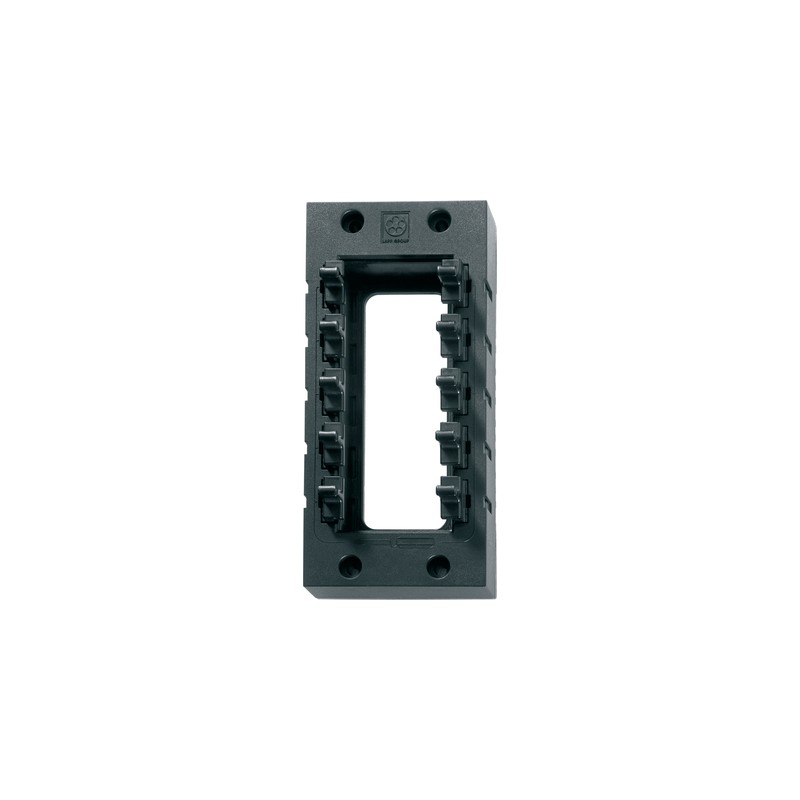

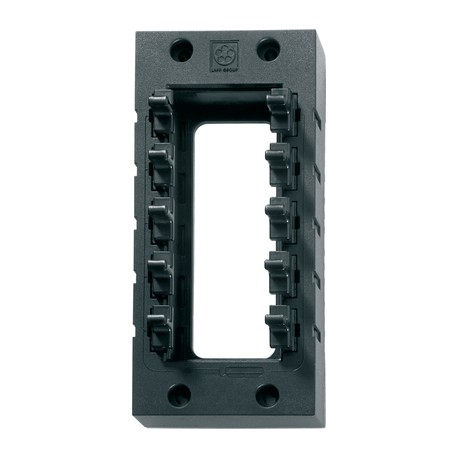

52220050 SKINTOP CUBE MULTI VERSION 1 LAPP SKINTOP CUBE MULTI VERSION 1

Benefits

• Large, variable clamping ranges due to elastic gel technology
• Easy installation of the cables even for high packing density
• Optimum strain relief at the entire cable bundle
• Simplified servicing due to easy assembling and disassembling
• Not used bushings remain securely sealed

Application range

• Used in areas where a lot of cables and wires need to be inserted into housings with minimum space requirements
• For not harnessed cables and media hoses
• Apparatus and switch cabinet construction
• Automation technology

Product features

• SKINTOP® CUBE MULTI Version 1
  Number of cable bushings:
  9 x 3-6 mm clamping range
  9 x 6-9 mm clamping range
  2 x 9-13 mm clamping range
  1 x 13-16 mm clamping range
• SKINTOP® CUBE MULTI Version 2
  Number of cable bushings:
  23 x 5-8 mm clamping range

Norm references / Approvals

• UL 50, UL 50E, CSA C22.2
• UL 508A for Industrial Control Panels
• UL File No. E349737

Product Make-up

• The system consists of SKINTOP® CUBE FRAME and a gel insert SKINTOP® CUBE MULTI.
• Removal of the gel insert by opening the holder
• For cut-outs for 24-pin industrial connectors (36 x 112 mm)

Note

• For better strain relief, the cable bundle can be fixed with help of a cable tie

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000240
• ETIM 5.0 Class-Description: Cable entry

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000240
• ETIM 6.0 Class-Description: Cable entry

Certifications

• UL File No. E349737
• Fire behaviour according to UL94 V-2

Note

• Individual hole configuration on request

Material

• Frame: Glass fiber reinforced polyamide
  Frame seal: CR
  Gel insert: PC / Gel

Protection rating

• IP 66

Temperature range

• -30°C to +100°C
