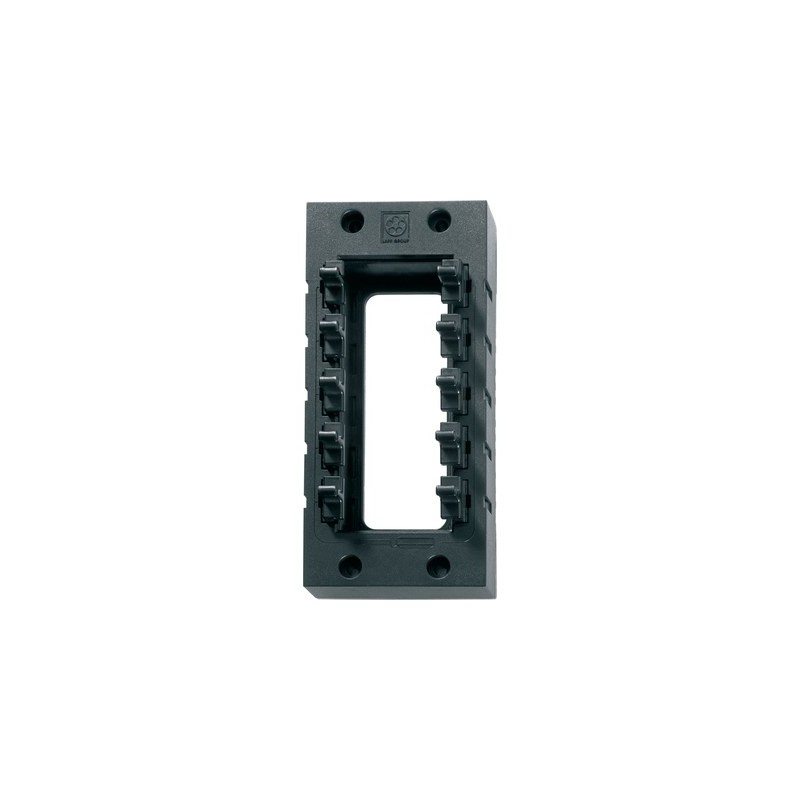

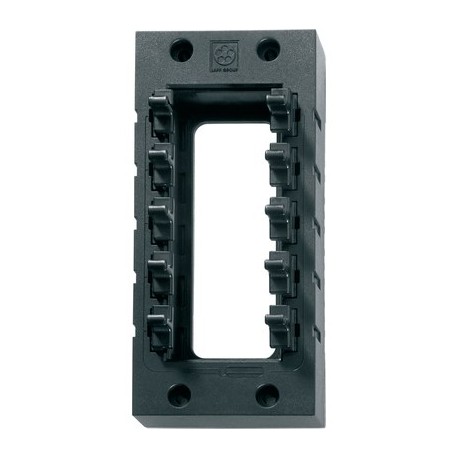

52220000 SKINTOP CUBE FRAME 16 LAPP SKINTOP CUBE FRAME 16

Benefits

• Variable clamping range
• Vibration-safe module fixation
• Strain relief
• Oil resistance
• Simplified servicing due to easy assembling and disassembling

Application range

• For installation of harnessed cables
• Used in areas where a lot of cables and wires need to be inserted into housings with minimum space requirements
• Apparatus and switch cabinet construction
• Electronic installations
• Automation technology

Norm references / Approvals

• UL 50, UL 50E, CSA C22.2
• UL 508A for Industrial Control Panels
• UL File No. E349737

Product Make-up

• The SKINTOP® CUBE system consists of the SKINTOP® CUBE FRAME and the clip modules SKINTOP® CUBE MODULE.
• For cut-outs for industrial connectors with standard defined boreholes.
• For cut-outs for 16-pin industrial connectors (36 x 86 mm)
• For cut-outs for 24-pin industrial connectors (36 x 112 mm)

Note

• SKINTOP® CUBE MODULE 20x20 BLIND can be used as a blind module and for clamping ranges 1 - 3 mm
• For better strain relief, the cable bundle can be fixed with help of a cable tie

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000240
• ETIM 5.0 Class-Description: Cable entry

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000240
• ETIM 6.0 Class-Description: Cable entry

Certifications

• UL File No. E349737
• Fire behaviour according to UL94 V-2

Note

• The installation dimensions and possible module combinations can be found in appendix T21

Material

• Frame: glass fibre-reinforced polyamide
  Frame seal: CR
  Clip module: special polypropylene
  Clip module seal: LSE 2

Protection rating

• IP 64

Temperature range

• Dynamic: -20°C up to +80°C
• Static: -40°C up to +80°C
