> LAPP>SKINTOP cabling>52115750 SKINTOP MS-XL PG 21 LAPP SKINTOP MS-XL PG 21
Previous Product Next Product
52115750 SKINTOP MS-XL PG 21 LAPP SKINTOP MS-XL PG 21 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

52115750 SKINTOP MS-XL PG 21 LAPP SKINTOP MS-XL PG 21

52115750

SKINTOP MS-XL PG 21

LAPP

25

SKINTOP MS-XL PG 21

SKINTOP® MS-XL

More details


Cable and wire entry systems > Cable gland

SKINTOP cabling

* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total price: $191.59
Unit price: $7.66

Quantity Price
25+$7.66
50+$6.66
75+$6.43
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲

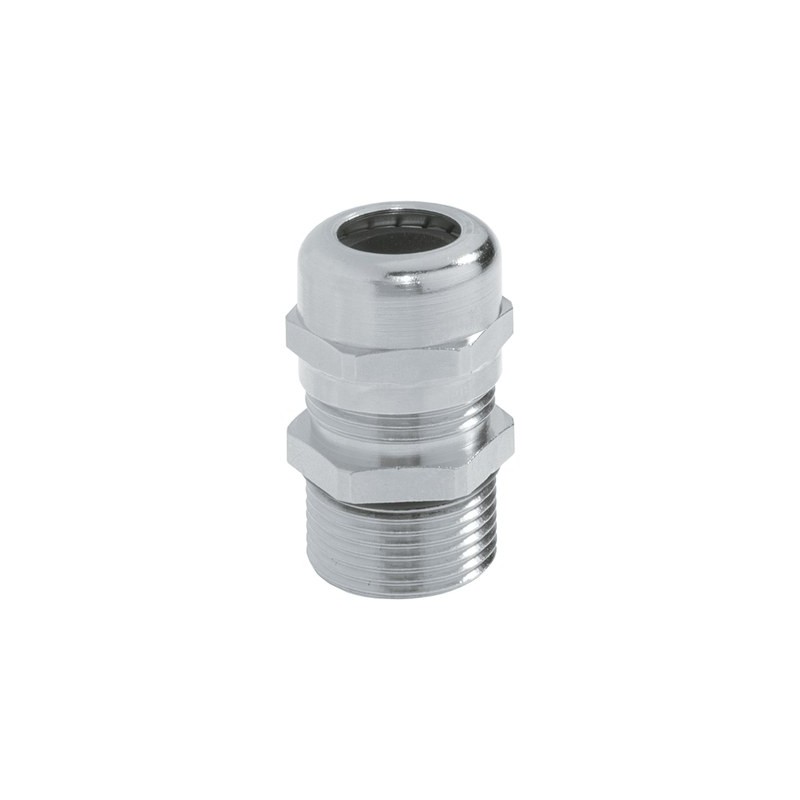

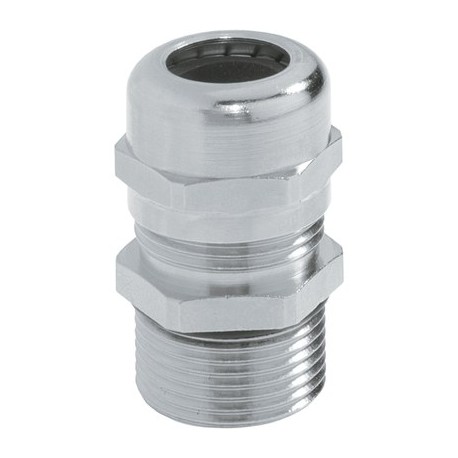

SKINTOP® MS-XL, brass cable gland with wide, variable clamping ranges, with long connection thread especially for thick walls

Benefits

  • Especially for thick walls
  • Maximum reliability
  • Wide, variable clamping ranges
  • Optimum strain relief

Application range

  • With long connection thread for applications involving a thicker wall
  • In areas where mechanical and chemical stability are critical
  • Chemical industry
  • Measurement and control technology
  • Machine and equipment manufacturing

Product Make-up

  • PG connection thread acc. to DIN 40430

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Caution

  • Refer to Appendix T21 for the installation dimensions and torques

Material

  • Body: nickel-plated brass
    Insert: polyamide
    Sealing: CR
    O-ring: NBR

Protection rating

  • IP 68 - 5 bar

Temperature range

  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C up to +100°C

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE LAPP EN.pdf 58 Mbytes
52115750 SKINTOP MS-XL PG 21 52115750 EN_52115700.pdf 300 Kbytes 52115750 SKINTOP MS-XL PG 21 52115750 EN_52115700.pdf
