LAPPSKINDICHT cabling52108021 SKINDICHT SE-M 32x1,5 o. E+D LAPP SKINDICHT SE-M 32x1,5 o. E+D

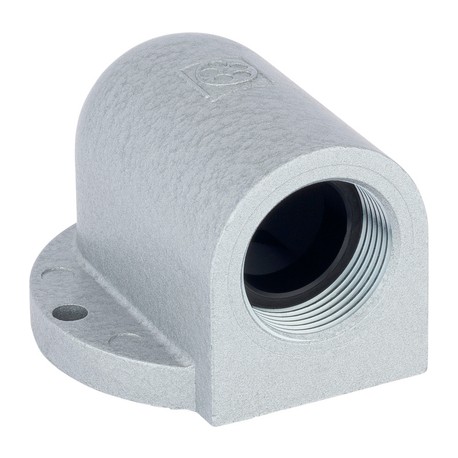

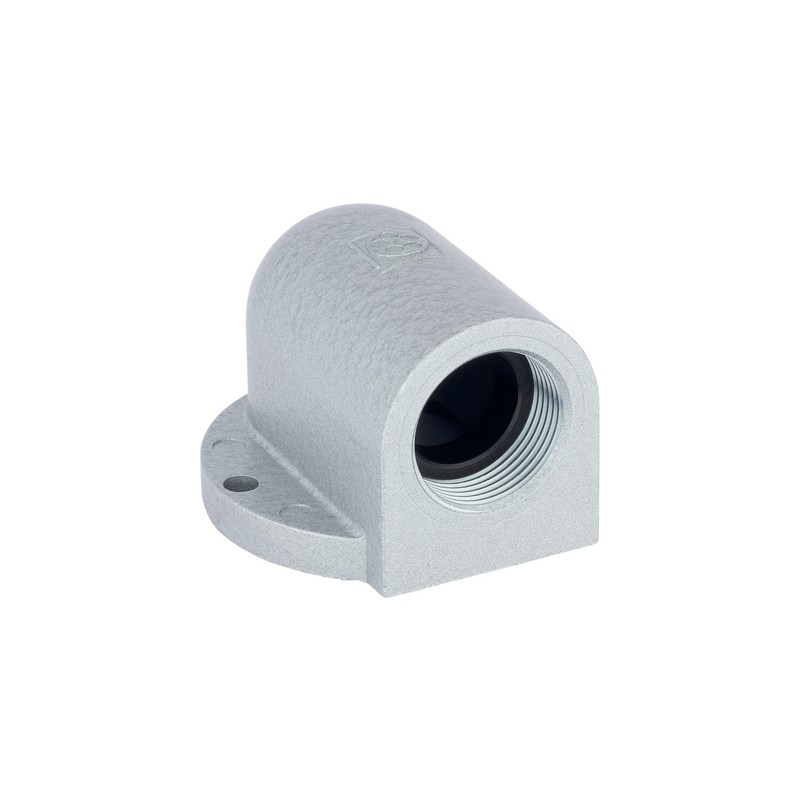

LAPP 52108021 52108021 SKINDICHT SE-M 32x1,5 o. E+D - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

52108021 SKINDICHT SE-M 32x1,5 o. E+D LAPP SKINDICHT SE-M 32x1,5 o. E+D

Reference: 52108021

Catalog Number: SKINDICHT SE-M 32x1,5 o. E+D

Manufacturer: LAPP

Description:

SKINDICHT SE-M 32x1,5 o. E+D
SKINDICHT® SE-M without E+D

Categories:

  • Cable and wire entry systems > Cable gland
  • LAPP > SKINDICHT cabling

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 12,94 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1 week.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

SKINDICHT® SE-M without E+D, angular cable outlet for missing connection thread and high mechanical load, can be combined

Benefits

  • Combination of different conduit glands is possible
  • Corrosion-resistant
  • Easy to install
  • Completely safe cable entry
  • Low overall height

Application range

  • The flange angle gland can be combined with all glands (including O-ring) e.g. strain relief, bending protection and conduit glands
  • For high mechanical stress
  • When no connection thread is provided

Product Make-up

  • M20 x 1.5 - M25 x 1.5 with 2 screw holesM32 x 1.5 with 4 screw holes

Note

  • The protection class is dependent on the combination with the various special glands. The minimum standard is IP 55.
  • For combination with other SKINDICHT® or SKINTOP® cable glands, we propose our SKINDICHT® SE-M without incised sealing ring (E) and compression screw (D)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Material

  • Body: zinc die-casting, grey,
    hammer tone finish
    O-ring: NBR

Protection rating

  • IP 55

Temperature range

  • -20°C to +100°C

DATASHEET - PDF

Title
Size
Type
52108021 52108021 EN_52108011.pdf
438 Kbytes
PDF CATALOGUE LAPP EN
69 Mbytes
