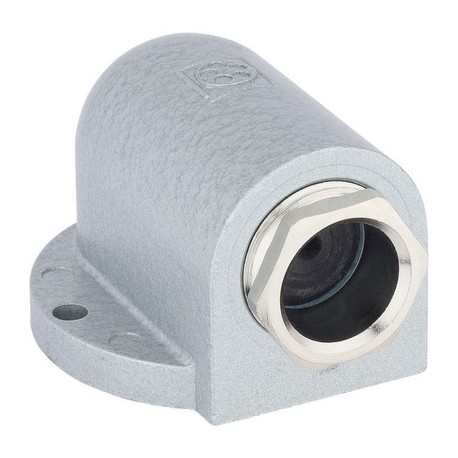

52108010 SKINDICHT SE-M 25x1,5 LAPP SKINDICHT SE-M 25x1,5
52108010
SKINDICHT SE-M 25x1,5
LAPP
5
SKINDICHT SE-M 25x1,5
SKINDICHT® SE-M
Cable and wire entry systems > Cable gland
SKINDICHT cabling
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info

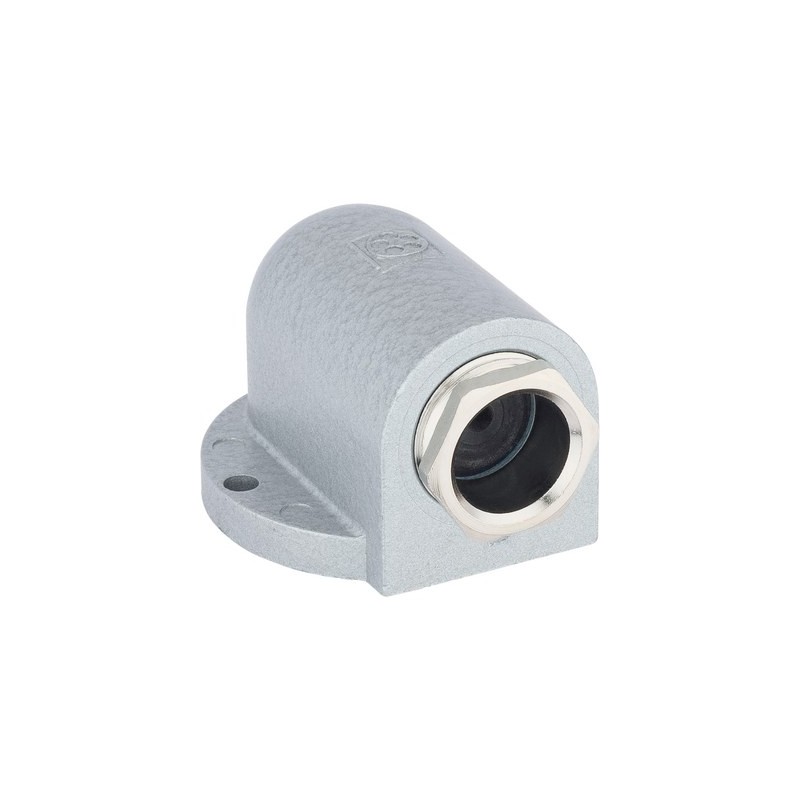

▲SKINDICHT® SE-M, angular cable outlet, incised sealing ring as a seal, for missing connection thread and high mechanical load
Benefits
- Sealed by incised sealing ring
- Corrosion-resistant
- Easy to install
- Completely safe cable entry
- Low overall height
Application range
- For high mechanical stress
- When no connection thread is provided
Product Make-up
- M20 x 1.5 - M25 x 1.5 with 2 screw holes
M32 x 1.5 with 4 screw holes - With incised sealing ring
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland
Material
- Body: zinc die-casting, grey,
hammer tone finish
Compression screw: nickel-plated brass
Incised sealing ring: CR/NBR
O-ring: NBR
Protection rating
- IP 55
Temperature range
- -20°C to +80°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 52108010 SKINDICHT SE-M 25x1,5 52108010 EN_52108020.pdf | 438 Kbytes |
|
