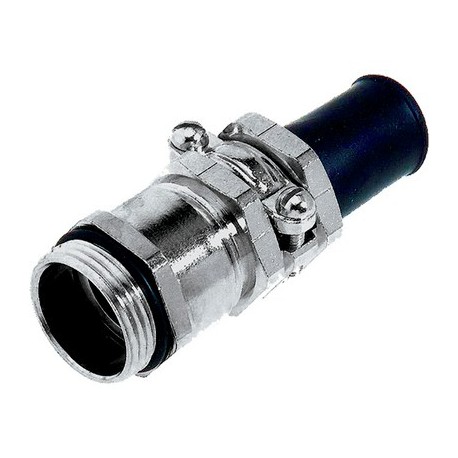

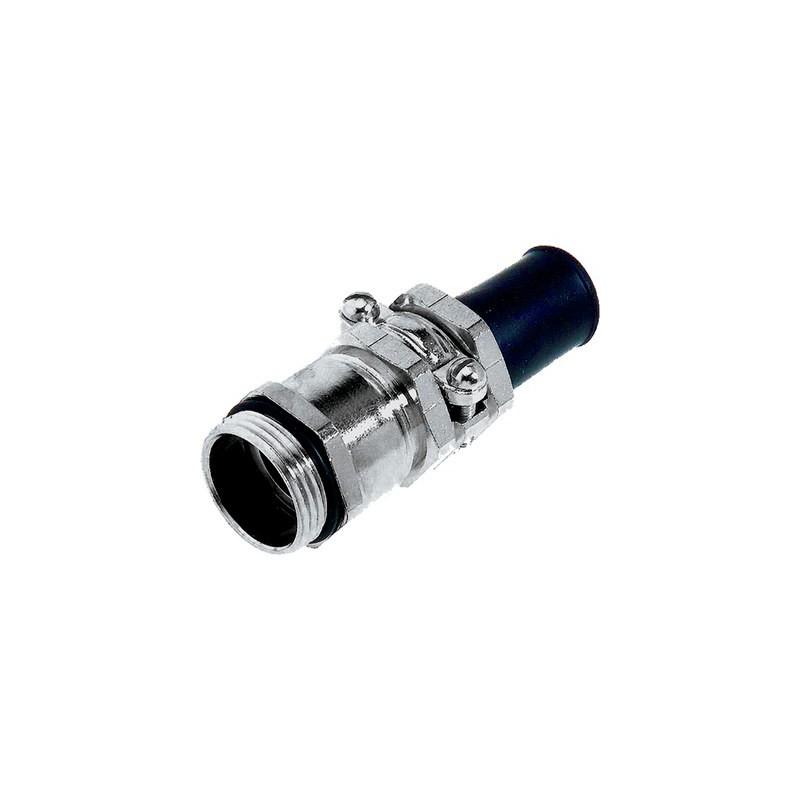

52106640 LAPP SR-48/40 CABLE CLAMP CE

Reference: 52106640

Manufacturer: LAPP

Description:

SR-48/40 CABLE CLAMP CE
SKINDICHT® SR-M

Categories:

  • LAPP > SKINDICHT cabling

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 53,79 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Benefits

  • Reliable bending and anti-kink protection
  • High strain relief
  • Robust
  • For cables with large outer diameters
  • High degree of protection

Application range

  • Cables for electrical appliances and machinery that are moved under normal use must be protected against excessive bending as required in accordance with VDE 0700-1
  • Handheld device
  • Portable equipment
  • Building sites
  • Moving machine parts

Product Make-up

  • Metric connection thread acc. to DIN EN 60423
  • Basis for technical information DIN IEC 62444

Note

  • Counter nut to be used: SKINDICHT® SM-M
  • For EMC version, refer to SKINDICHT® SRE-M
  • Example description:
    SR-M 12/7/5
    12 = metric connection thread
    7 = PG function thread
    5 = clear opening of seal

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Caution

  • The installation dimensions
    can be found in appendix T21

On request

  • Available with long connection thread

Material

  • Metal parts: nickel-plated brass
    O-ring: NBR
    Anti-kink protection: CR/NBR

Protection rating

  • IP 65

Temperature range

  • -20°C to +80°C

DATASHEET - PDF

Title
Size
Type
52106640 52106640 EN_52106600.pdf
434 Kbytes
PDF CATALOGUE LAPP EN
69 Mbytes
