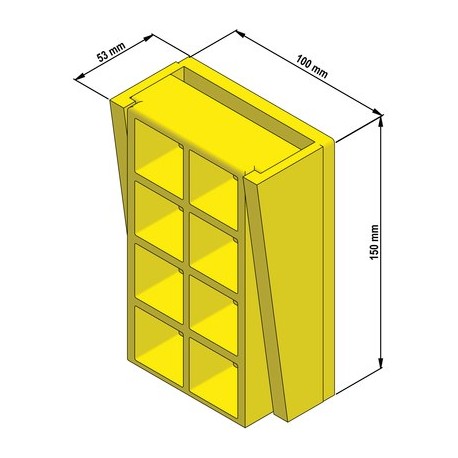

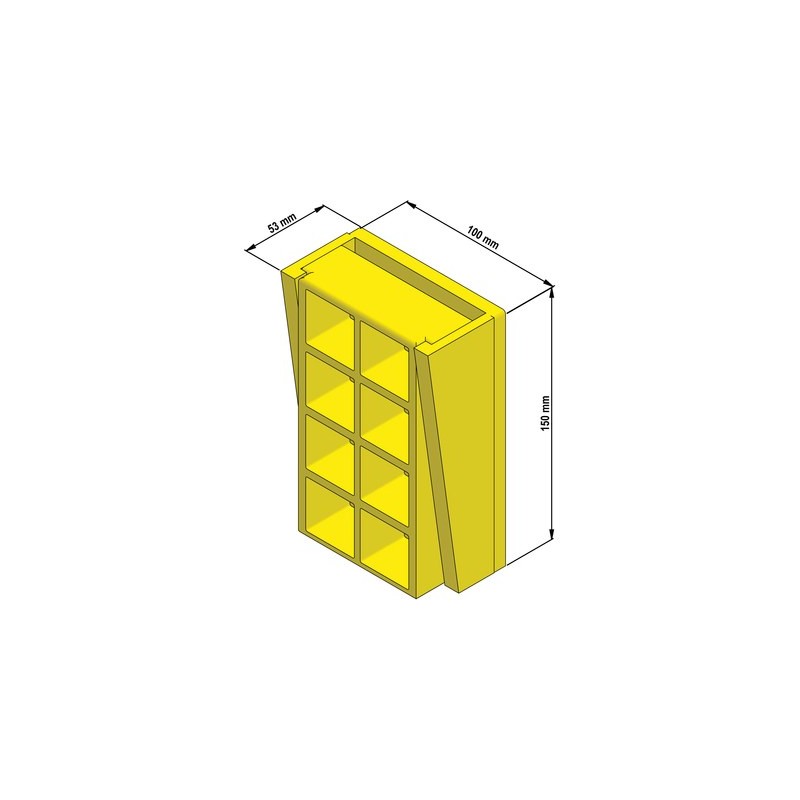

52026050 FKK 07 LAPP CABLE WEDGE CLAMPS FKK 07

Reference: 52026050

Catalog Number: FKK 07

Manufacturer: LAPP

Description:

CABLE WEDGE CLAMPS FKK 07
FKK Flat cable wedge clamps

Categories:

  • Installation material for cables and tubes > Pipe saddle clamp
  • LAPP > Accessories

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 16,09 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1 week.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

FKK 08 wedges for fastening flat cables up to 10 mm cable thickness

Suitable mounting plates in the web catalog

Benefits

  • On the shaft side, the mounting plate can be screwed onto the wall or bolted or welded to the rail bracket
  • The mounting plate can be bolted or welded to the lift cage

Application range

  • Mounting flat control cables

Product Make-up

  • The small wedge-shaped cable clamp can hold up to 2 flat cables, the big one up to 3 flat cables

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002407
  • ETIM 5.0 Class-Description: Accessories for installation rail current/data cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002407
  • ETIM 6.0 Class-Description: Accessories for installation rail current/data cable

Info

  • Clamping force (at overall cable thickness):
    FKK 08: 2-10mm = 600-800N
    FKK 07: 2-9mm / 16-17mm = 800N
  • Minimum insert depth for wedge:
    FKK 08: 60% = 60mm
    FKK 07: 60% = 90mm

Material

  • Polyamide 6.6 - halogen-free

Temperature range

  • Operating temperature: -20°C to +50°C
