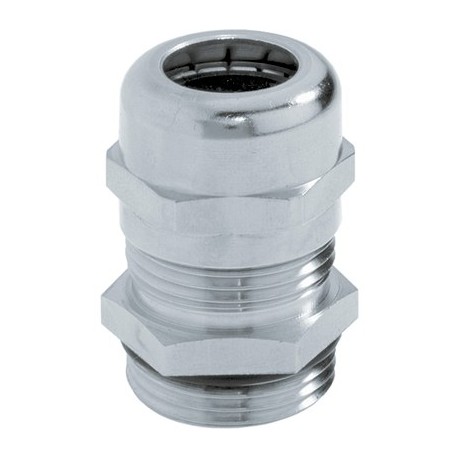

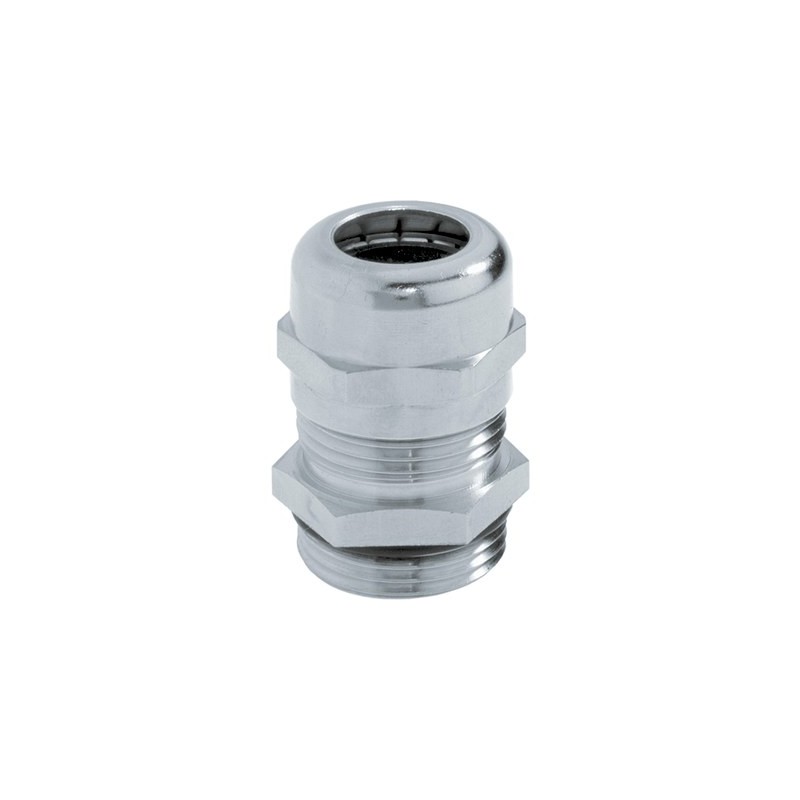

52015767 SKINTOP MS PG 48 LAPP SKINTOP MS PG 48
52015767
SKINTOP MS PG 48
LAPP
5
SKINTOP MS PG 48
SKINTOP® MS
Cable and wire entry systems > Cable gland
SKINTOP cabling
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
More info
▲SKINTOP® MS, brass cable gland with maximum reliability, in areas where mechanical and chemical stability are critical
Benefits
- Maximum reliability
- Optimum strain relief
- Wide, variable clamping ranges
Application range
- In areas where mechanical and chemical stability are critical
- Chemical industry
- Measurement and control technology
- Machine and equipment manufacturing
- Plant engineering
Product Make-up
- PG connection thread acc. to DIN 40430
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland
Caution
- Refer to Appendix T21 for the installation dimensions and torques
Material
- Body: nickel-plated brass
Insert: polyamide
Sealing: CR
O-ring: NBR
Protection rating
- IP 68 - 5 bar
Temperature range
- Dynamic: -25°C up to +100°C
- Fixed: -40°C up to +100°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 58 Mbytes |
|
| 52015767 SKINTOP MS PG 48 52015767 EN_52015720.pdf | 300 Kbytes |
|
