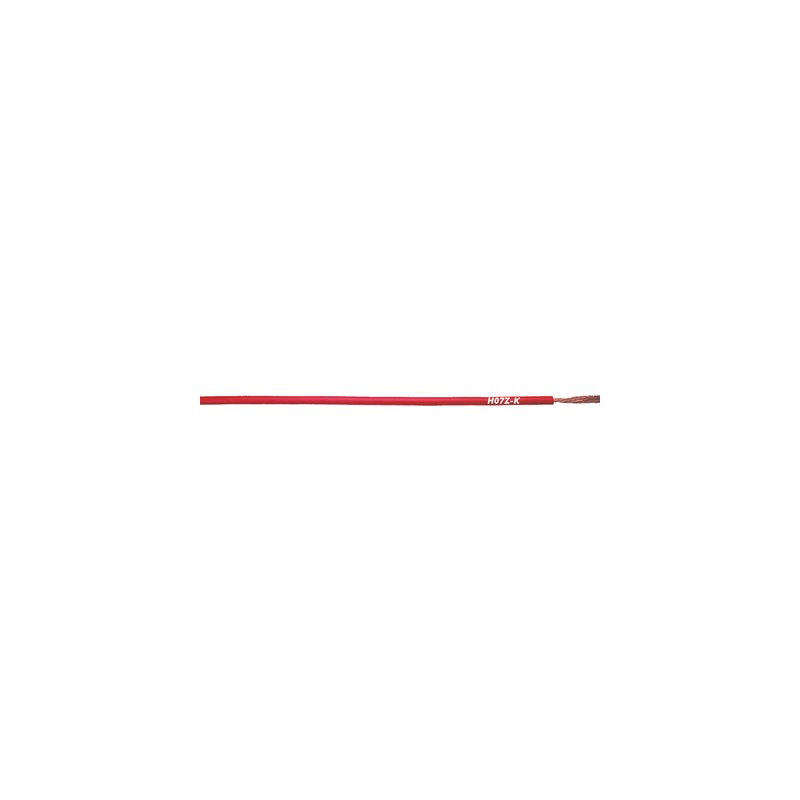

4726041 H07Z-K 90°C 1X1,5 RD LAPP H07Z-K 90°C 1X1,5 RD

Benefits

• Protection of human life and the environment thanks to the avoidance of the formation of acid in case of fire
• Time-saving assembly

Application range

• For wiring of lamps, devices, switchgear cabinets and distribution boxes
• For installation in tubes, on, in and under plaster as well as in closed installation ducts
• In building with a high density of people or valuable assets
• For use in dry rooms
• For expanded ambient temperatures
  and higher conductor cross-sections
  see ÖLFLEX® HEAT 125 SC

Product features

• The insulation material is halogen-free and free of other materials which could release toxic gases in the event of fire
• Low amount of corrosive gases in the event of fire
• Low smokes/low smoke density in the event of fire according to IEC 61034
• Flame-retardant according IEC 60332-1-2

Norm references / Approvals

• <HAR> cable type certification acc. EN 50525-3-41
• No cable type certified core insulation colours according to EN 50525-1/ VDE 0285-525-1: transparent, green (single colour), yellow (single colour), all double colours (except of green-yellow and yellow-green)

Product Make-up

• Fine-wire strand made of bare copper wires
• Core insulation: Halogen-free

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000993
• ETIM 5.0 Class-Description: Single core cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000993
• ETIM 6.0 Class-Description: Single core cable

Conductor stranding

• Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5

Minimum bending radius

• According to EN 50565-1
• OD ≤ 8 mm: 4 x OD*/2 x OD**;
  8 < OD ≤ 12 mm: 5 x OD*/3 x OD**;
  OD > 12 mm: 6 x OD*/4 x OD**

Nominal voltage

• U0/U: 450/ 750 V

Test voltage

• 2500 V

Current rating

• VDE 0298-4
• EN 50565-1/ VDE 0298-565-1

Temperature range

• During installation: -5°C bis +90°C
  Fixed installation: -40°C bis +90°C
