LAPPAccessories4571197 LAPP Flat Ground Strap/Terminals 1x6/M6/300mm

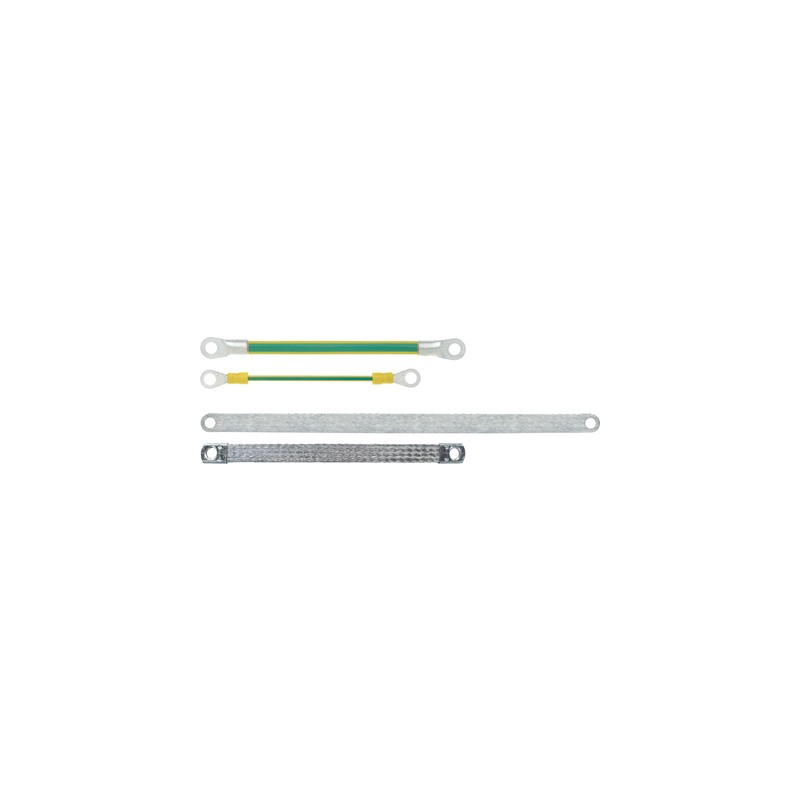

LAPP 4571197 4571197 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

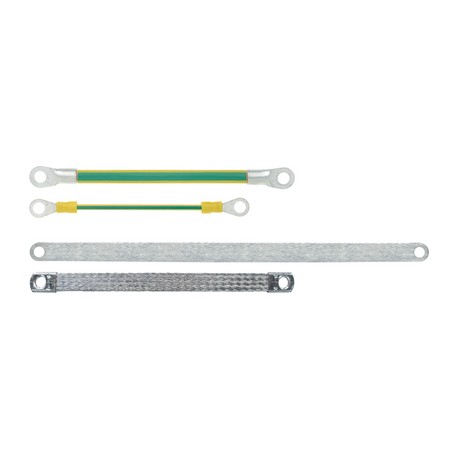

4571197 LAPP Flat Ground Strap/Terminals 1x6/M6/300mm

Reference: 4571197

Manufacturer: LAPP

Description:

Flat Ground Strap/Terminals 1x6/M6/300mm
Ground Straps / Flat Ground Straps

Categories:

  • LAPP > Accessories

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 98,46 €

Unit Price: 3,9385 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1 week.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Application range

  • Control cabinet manufacturing
  • The protective earth safety measure is prescribed by standard
  • Fixed and moving metal parts, such as doors in switch cabinet construction, must be earthed

Product features

  • Fixed lengths for M6 and M8 screws

Norm references / Approvals

  • UL File number: E501239, see table

Product Make-up

  • Ground straps:
    - Strands of bare copper wires
    - PVC-based core insulation
    - Assembled with ring cable lugs
  • Pressure-welded flat ground straps:
    - Strand made of tinned-copper wires
    - Welded ends
  • Flat ground straps with sleeves:
    - Strands made of tinned-copper wires
    - Assembled with pressed contact sleeves

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000490
  • ETIM 5.0 Class-Description: Accessories for earthing and lightning

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000490
  • ETIM 6.0 Class-Description: Accessories for earthing and lightning

Core identification code

  • Assembled ground straps
    Green/Yellow

Conductor stranding

  • Assembled ground straps
    IEC 60 228 Class 6
    Assembled flat ground straps
    IEC 60 228 Class 6, tin-plated
  • Extra-fine wire

Minimum bending radius

  • Assembled ground straps
    7 x outer diameter
    Assembled flat ground straps
    2 x thickness of the strap

Test voltage

  • Assembled ground straps
    2500 V

Temperature range

  • Assembled ground straps
    -30°C to +70°C
    Assembled flat ground straps
    -5°C to +70°C

DATASHEET - PDF

Title
Size
Type
4571197 4571197 EN_70399965.pdf
359 Kbytes
PDF CATALOGUE LAPP EN
69 Mbytes
