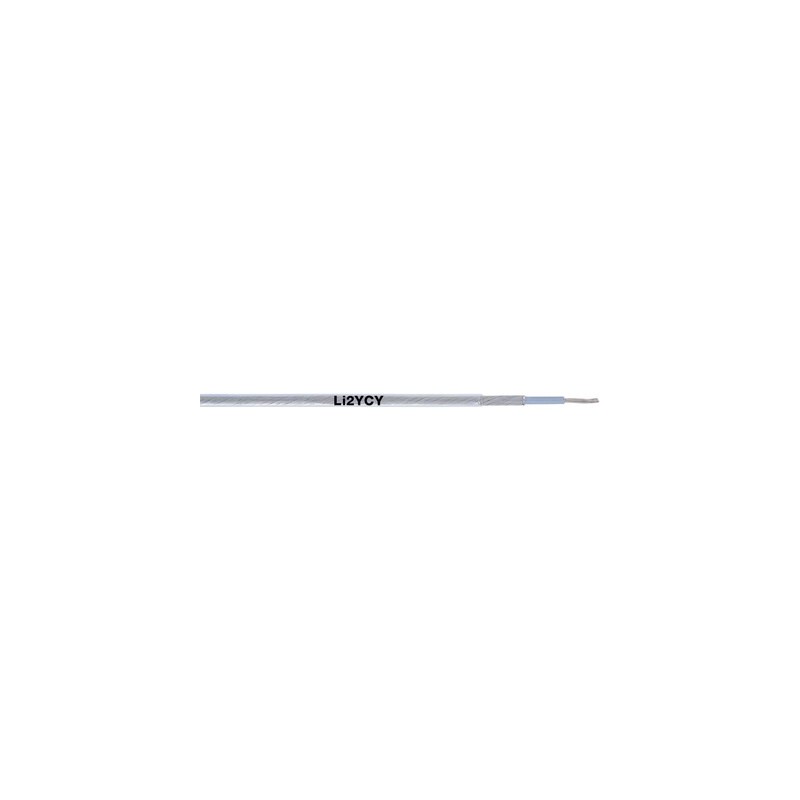

4550115 Li2YCY 1x0,14 LAPP Li2YCY 1x0,14
4550115
Li2YCY 1x0,14
LAPP
100 m.
Li2YCY 1x0,14
Li2YCY
Single cores
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲LiYCY, screened PVC single core with PE-insulation acc. VDE 0812, use in switch cabinets and EMC-sensitive environments
Benefits
- Prevention of electromagnetic interference to other components
Application range
- Wiring of measuring instruments, switch cabinets, electrical components, transmitters and receivers
- In EMC-sensitive environments
Product features
- Flame-retardant according IEC 60332-1-2
- Low cable capacitance, short signal transmission time
- The outer diameters stated in the part number table are maximum values
Norm references / Approvals
- Based on VDE 0812
Product Make-up
- Strands of tinned-copper wires
- Core insulation: PE
- Wrapped screening made from tinned copper wire
- Outer sheath: Based on PVC, transparent
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000993
- ETIM 5.0 Class-Description: Single core cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000993
- ETIM 6.0 Class-Description: Single core cable
Peak operating voltage
- 350 V (not for power transmission)
Test voltage
- 1200 V
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -30°C to +80°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 4550115 Li2YCY 1x0,14 4550115 EN_4550115.pdf | 176 Kbytes |
|
