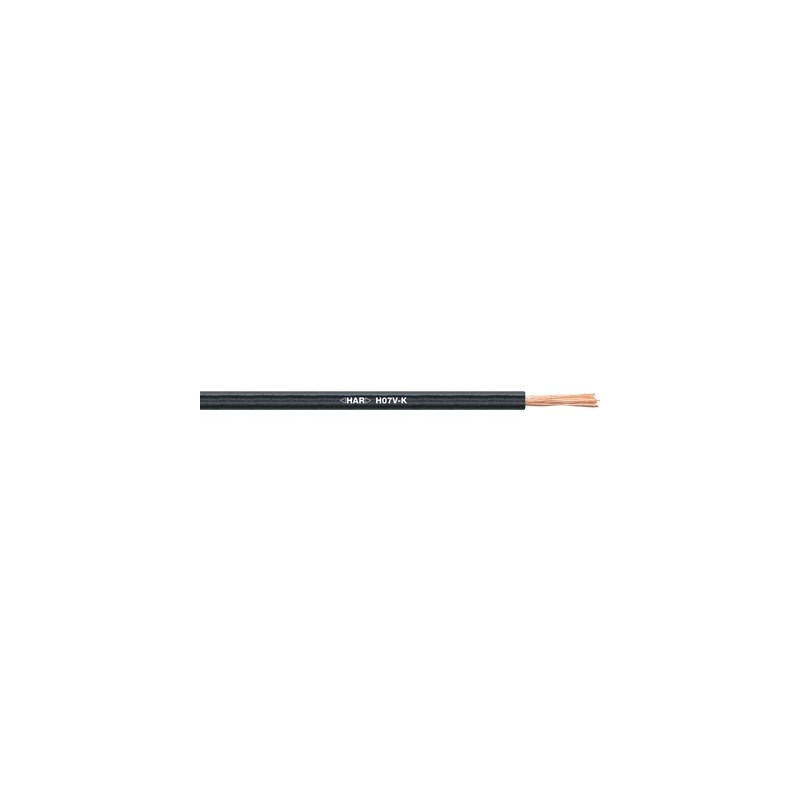

4520006 H07V-K 1X16 GNYE LAPP H07V-K 1X16 GNYE

Benefits

• Cables' <HAR>marking also stands for the international endorsement of national certification institutes' testing marks and certificates, e. g. <VDE><HAR>. The <HAR>marking is of special importance in case of goods traffic between European countries.

Application range

• Laying in tubes, exposed or buried in plaster, and in closed installation ducts
• For direct laying on racks, troughs and tubes only as potential equalisation conductor

Product features

• Flame-retardant according IEC 60332-1-2
• Spool: d1 = 18 mm; d2 = 200 mm; b = 85 mm

Norm references / Approvals

• <HAR> cable type certification acc. EN 50525-2-31
• No cable type certified core insulation colours according to EN 50525-1/ VDE 0285-525-1: transparent, green (single colour), yellow (single colour), all double colours (except of green-yellow and yellow-green)

Product Make-up

• Fine-wired copper conductor of bare copper strands in line with conductor class 5 acc. IEC 60228
• Core insulation: Based on PVC

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000993
• ETIM 5.0 Class-Description: Single core cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000993
• ETIM 6.0 Class-Description: Single core cable

Conductor stranding

• Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5

Minimum bending radius

• According to EN 50565-1
• OD ≤ 8 mm: 4 x OD*/2 x OD**;
  8 < OD ≤ 12 mm: 5 x OD*/3 x OD**;
  OD > 12 mm: 6 x OD*/4 x OD**

Nominal voltage

• U0/U: 450/750 V

Test voltage

• 2500 V

Current rating

• VDE 0298 Part 4
• EN 50565-1/ VDE 0298-565-1

Temperature range

• Fixed installation: -40°C to +70°C
