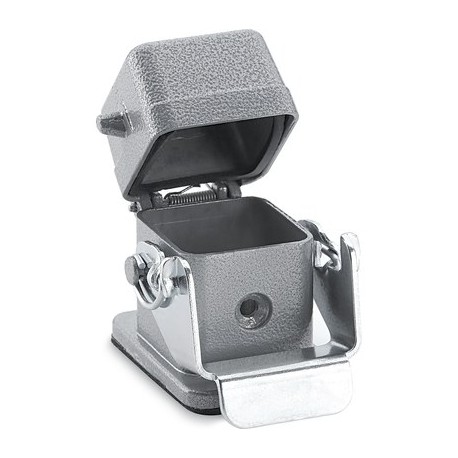

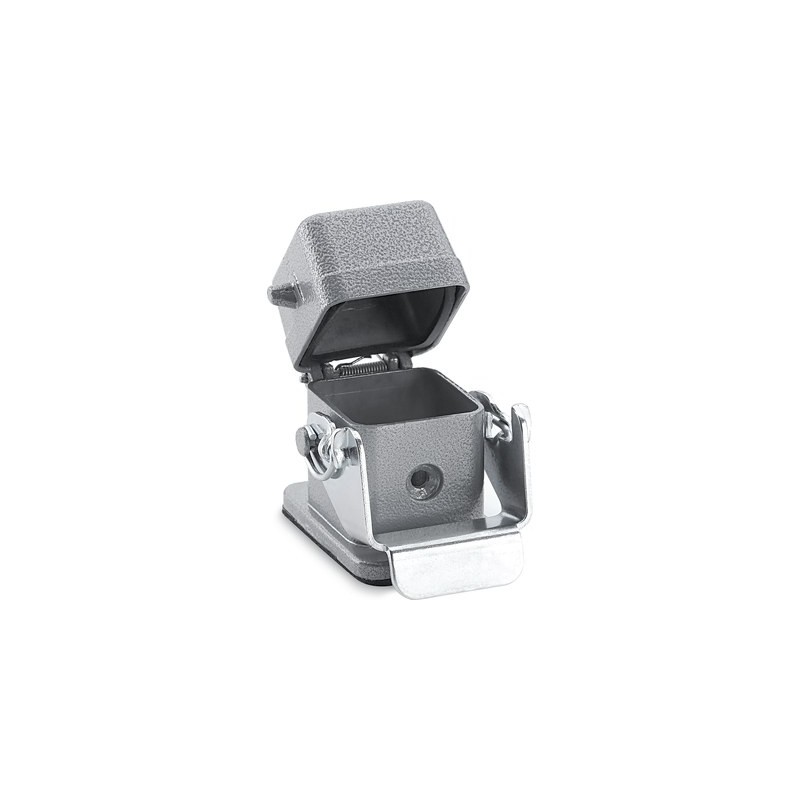

44429015 EPIC H-A 3 MAGD LAPP EPIC H-A 3 MAGD
44429015
EPIC H-A 3 MAGD
LAPP
10
EPIC H-A 3 MAGD
Connectors > Housing for rectangular connectors
EPIC rectangular
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲The compact metal housing for rectangular connectors is supplied with a seal and it is suitable for control systems.
- Metal lid with sturdy hinge
- Protection rating UL50E tested
Benefits
- Housing in plastic or metal version for safe connections in the smallest possible space
Application range
- Machine and equipment manufacturing
- Control engineering
- Electronic laboratory
Product features
- H-A case: Wall base
- 1 lever
- Metal cover
- Included: flat gasket
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: powder-coated zinc die-casting, grey
Lever: zinc-plated steel
Sealing: NBR - Metal cover
Protection rating
- IP 65 (latched)
- NEMA 250, UL50E: 12, 4 (latched)
VDE-tested
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 58 Mbytes |
|
| 44429015 EPIC H-A 3 MAGD 44429015 EN_44429015.pdf | 311 Kbytes |
|
