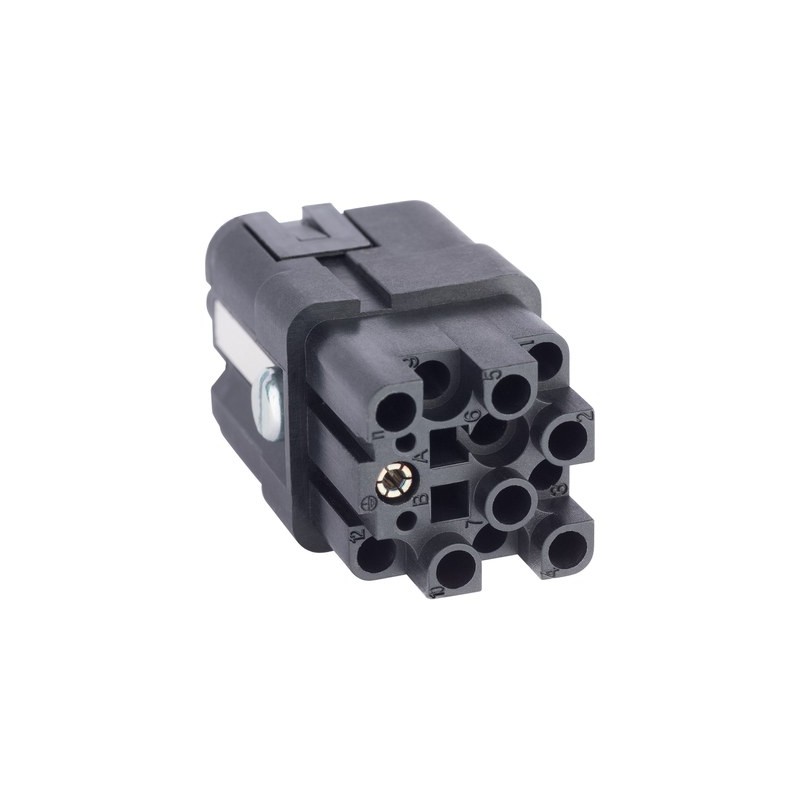

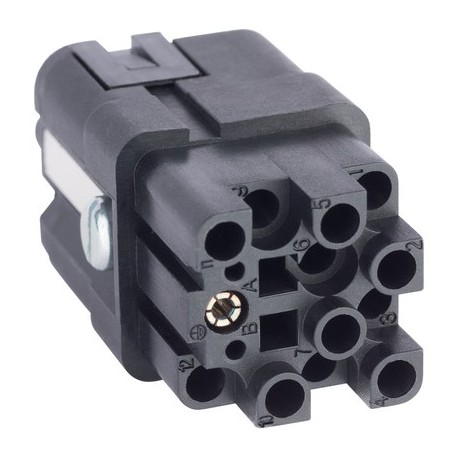

44424050 EPIC H-Q 12 BCM LAPP EPIC H-Q 12 BCM (10)
44424050
EPIC H-Q 12 BCM
LAPP
10
EPIC H-Q 12 BCM (10)
EPIC® H-Q 12
Connectors > Contact insert for rectangular connectors
EPIC rectangular
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲Benefits
- Mateable with market standard connectors.
- Suitable for conductor cross-sections from 0.14 - 4.0 mm².
- High performance crimping contacts
- PE contact with screw connection
Application range
- Machine and equipment manufacturing
- Control engineering
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000438
- ETIM 5.0 Class-Description: Contact insert for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000438
- ETIM 6.0 Class-Description: Contact insert for industrial connectors
Rated voltage (V)
- IEC: 400 V
UL: 600 V
CSA: 600 V
Rated impulse voltage
- 6 kV
Rated current (A)
- IEC: 10 A
UL: 14 A
CSA: 10 A
Pollution degree
- 3
Flammability
- UL94 V-0
Contact resistance
- < 3 mOhm
Contacts
- Copper alloy, hard silver/gold-plated
Number of contacts
- 12 + PE
Termination methods
- Crimp termination: 0.14 - 2.5 mm²
Material
- PA Polyamid
Cycle of mechanical operation
- 200
VDE-tested
- CSA-tested:
CSA File Number: 262771 - UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +120°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 44424050 EPIC H-Q 12 BCM 44424050 EN_44424050.pdf | 572 Kbytes |
|
