LAPPEPIC rectangular44424044 EPIC K 4/2 BS LAPP EPIC K 4/2 BS

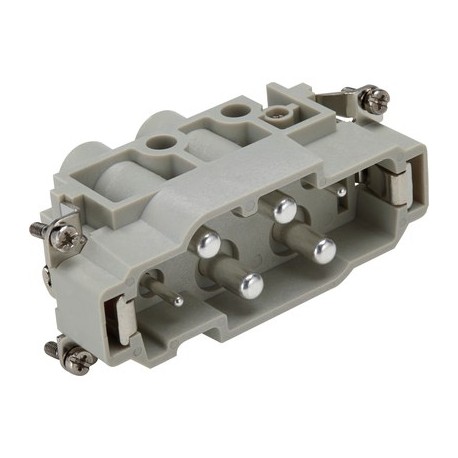

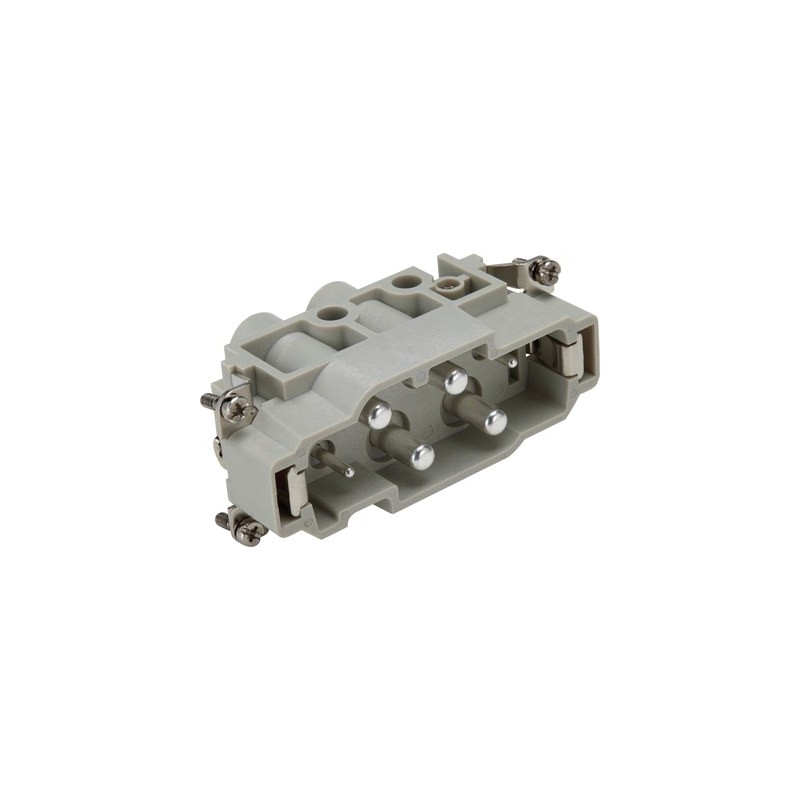

LAPP 44424044 44424044 EPIC K 4/2 BS - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

44424044 EPIC K 4/2 BS LAPP EPIC K 4/2 BS

Reference: 44424044

Catalog Number: EPIC K 4/2 BS

Manufacturer: LAPP

Description:

EPIC K 4/2 BS
EPIC® K 4/2

Categories:

  • Connectors > Contact insert for rectangular connectors
  • LAPP > EPIC rectangular

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 279,65 €

Unit Price: 27,965 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1 week.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

The combined insert is suitable for power and control and can be used, for example, in the area of recoverable energy and control systems.

Combination insert Power and Control

Benefits

  • Power and control in one connector insert
  • Best in combination with ÖLFLEX® SERVO

Application range

  • Mechanical engineering
  • Control engineering
  • Renewable energy

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

Rated voltage (V)

  • 830 V Power
  • 400 V Control

Rated impulse voltage

  • 8 kV

Rated current (A)

  • 80 A Power
  • 16 A Control

Pollution degree

  • 3

Flammability

  • UL94 V-0

Contact resistance

  • < 5 mOhm

Number of contacts

  • 4 + 2 + PE

Termination methods

  • Screw termination: 1.5 - 16.0 mm² (power contact)
  • Screw termination: 0.5 - 2.5 mm² (control contact)

Stripping length (mm)

  • 16 mm (Power)
  • 6 mm (Control)

Material

  • PC, polycarbonate

Cycle of mechanical operation

  • 500

Certifications

  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +125°C

DATASHEET - PDF

Title
Size
Type
44424044 EPIC K 4/2 BS 44424044 EN_44424044.pdf
472 Kbytes
PDF CATALOGUE LAPP EN
69 Mbytes
