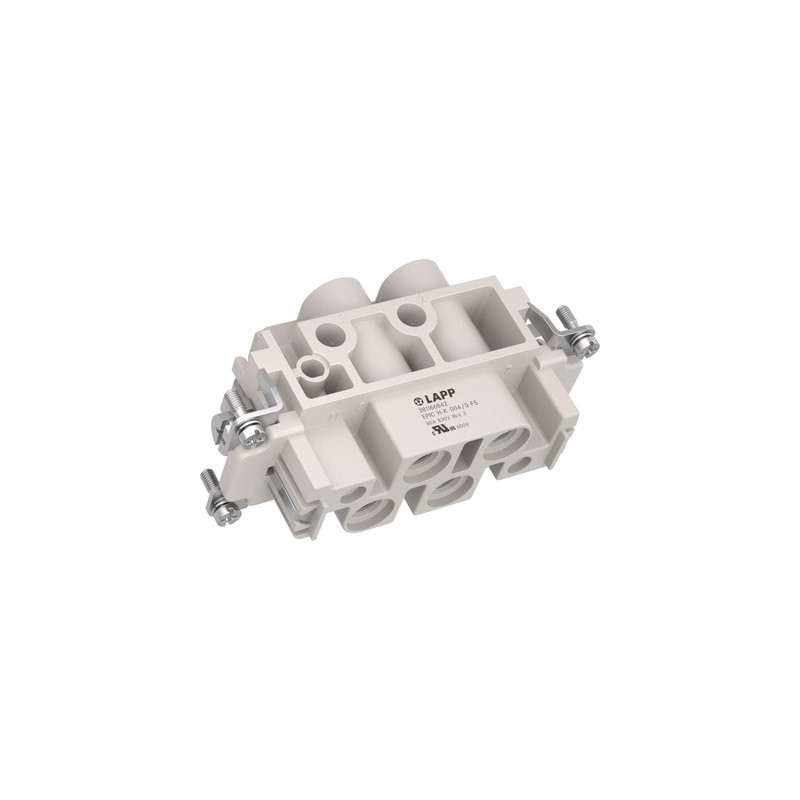

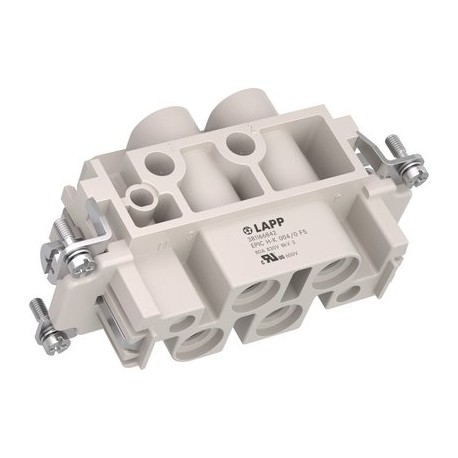

44424041 EPIC K 4/0 SS LAPP EPIC K 4/0 SS
44424041
EPIC K 4/0 SS
LAPP
10
EPIC K 4/0 SS
EPIC® K 4/0
Connectors > Contact insert for rectangular connectors
EPIC rectangular
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Often bought together
▲More info
▲The combined insert ensures a very high power output concentrated in a single insert and is ideal in combination with the ÖLFLEX SERVO cable.
Combination insert Power
Benefits
- High power in one connector insert
- Best in combination with ÖLFLEX® SERVO
Application range
- Mechanical engineering
- Control engineering
- Renewable energy
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000438
- ETIM 5.0 Class-Description: Contact insert for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000438
- ETIM 6.0 Class-Description: Contact insert for industrial connectors
Rated voltage (V)
- 830 V Power
Rated impulse voltage
- 8 kV
Rated current (A)
- 80 A Power
Pollution degree
- 3
Flammability
- UL94 V-0
Contact resistance
- < 5 mOhm
Number of contacts
- 4 + PE
Termination methods
- Screw termination: 1.5 - 16.0 mm² (power contact)
Stripping length (mm)
- 16 mm (Power)
Material
- PC, polycarbonate
Cycle of mechanical operation
- 500
Certifications
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +125°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 58 Mbytes |
|
| 44424041 EPIC K 4/0 SS 44424041 EN_44424041.pdf | 471 Kbytes |
|
