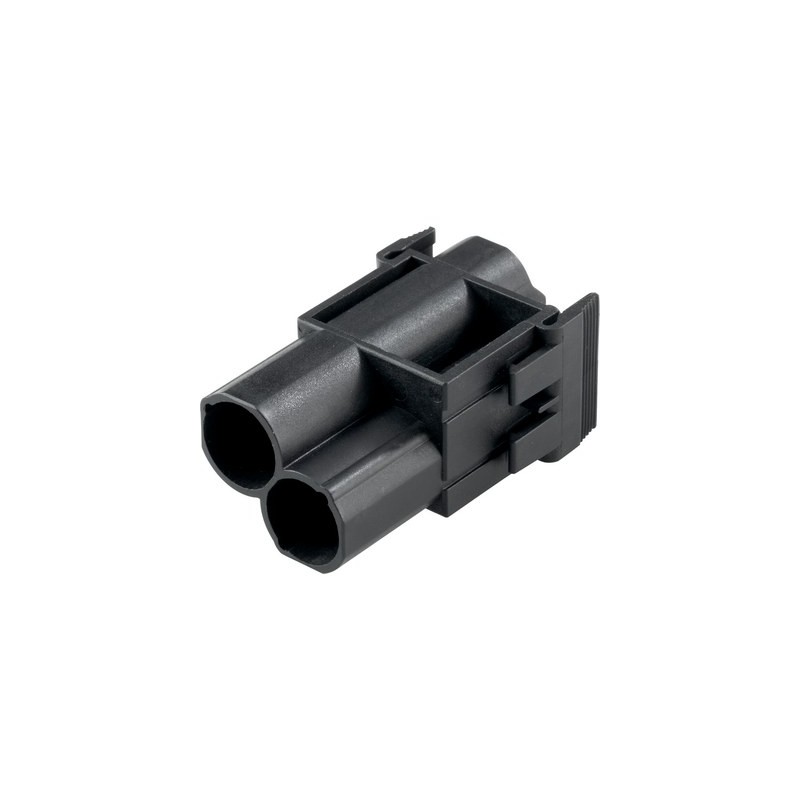

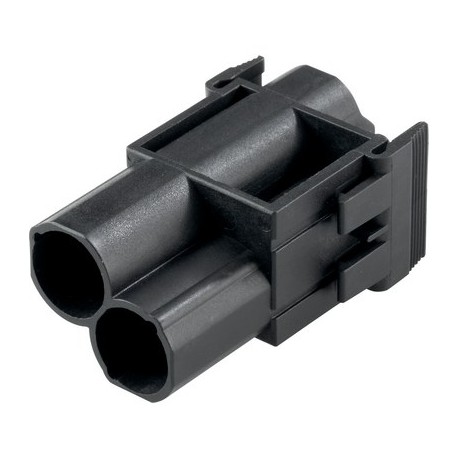

44424017 LAPP Modular MC MCS HHC2
44424017
LAPP
10
Modular MC MCS HHC2
Power module: HHC2
EPIC rectangular
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲Benefits
- High current transfer
- The mix of different functions in one plug guarantees high flexibility
- Crimp connection for permanent vibration proof contacting
Application range
- Mechanical and plant engineering
- Robotics industry
- Control engineering
- Renewable energy
Classification ETIM 5
- ETIM 5.0 Class-ID: EC002641
- ETIM 5.0 Class-Description: Modular connector (industrial connector)
Classification ETIM 6
- ETIM 6.0 Class-ID: EC002641
- ETIM 6.0 Class-Description: Modular connector (industrial connector)
Rated voltage (V)
- 1000
Rated impulse voltage
- 8 kV
Rated current (A)
- 150
Pollution degree
- 3
Number of contacts
- 2
Termination methods
- Crimp termination: 16 mm² ... 35 mm²
Material
- PA6
Cycle of mechanical operation
- 500
Temperature range
- -40°C to +125°C
