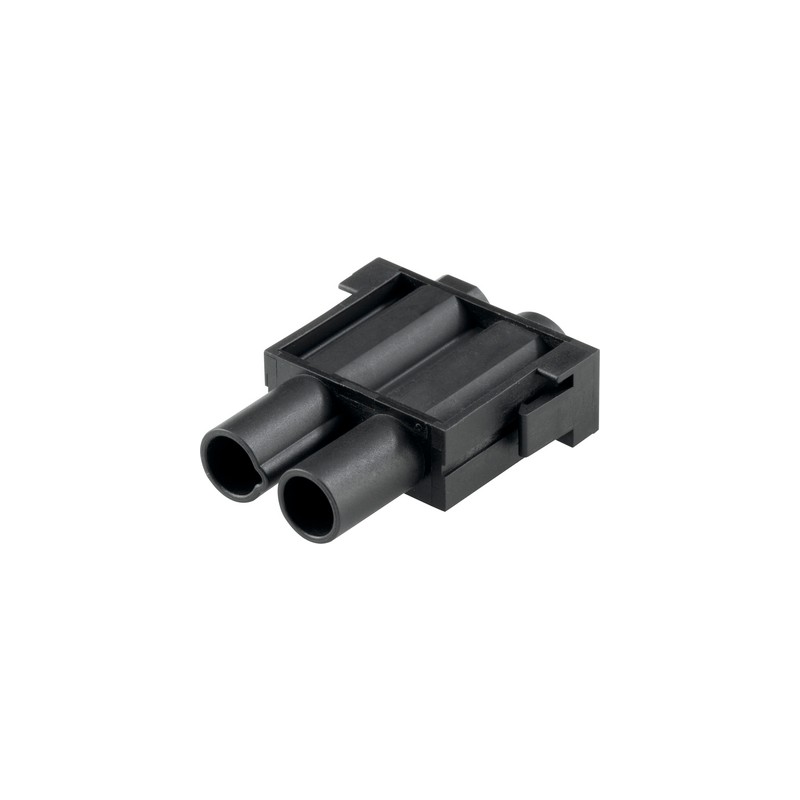

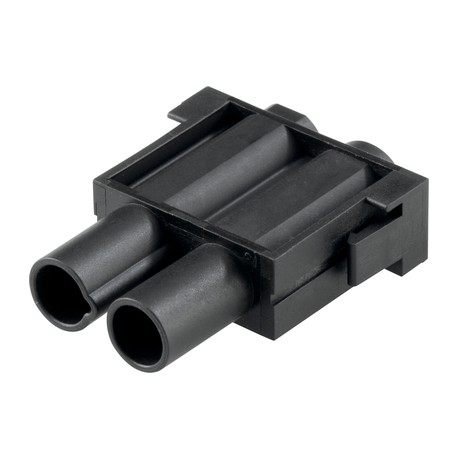

44424013 EPIC MCB HC2 LAPP EPIC MCB HC2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

44424013 EPIC MCB HC2 LAPP EPIC MCB HC2

44424013

EPIC MCB HC2

LAPP

10

EPIC MCB HC2

Power module: HC2

More details


Connectors > Modular connector (industrial connector)

EPIC rectangular

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total: $36.93
Unit price: $3.69
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



The power module ensures a high current in one modular slot and combines a greater number of functions. It is suitable for robotics and control systems.

High current with only one module slot

Benefits

  • High current transfer
  • The mix of different functions in one plug guarantees high flexibility
  • Crimp connection for permanent vibration proof contacting

Application range

  • Industrial machinery and plant engineering
  • Robotics industry
  • Control engineering
  • Renewable energy

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

Rated voltage (V)

  • 1000

Rated impulse voltage

  • 8 kV

Rated current (A)

  • 65

Pollution degree

  • 3

Number of contacts

  • 2

Termination methods

  • Crimp termination: 16.0 mm²

Material

  • PA6

Cycle of mechanical operation

  • 500

Temperature range

  • -40°C to +125°C

Datasheet - PDF
