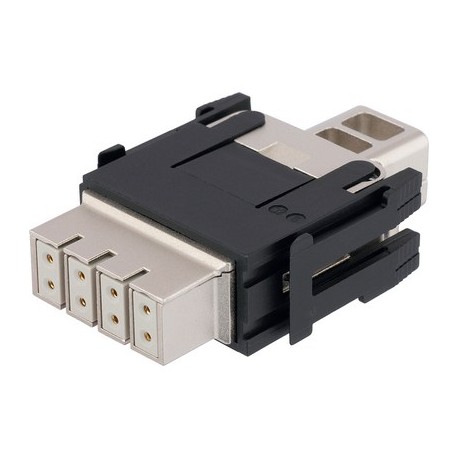

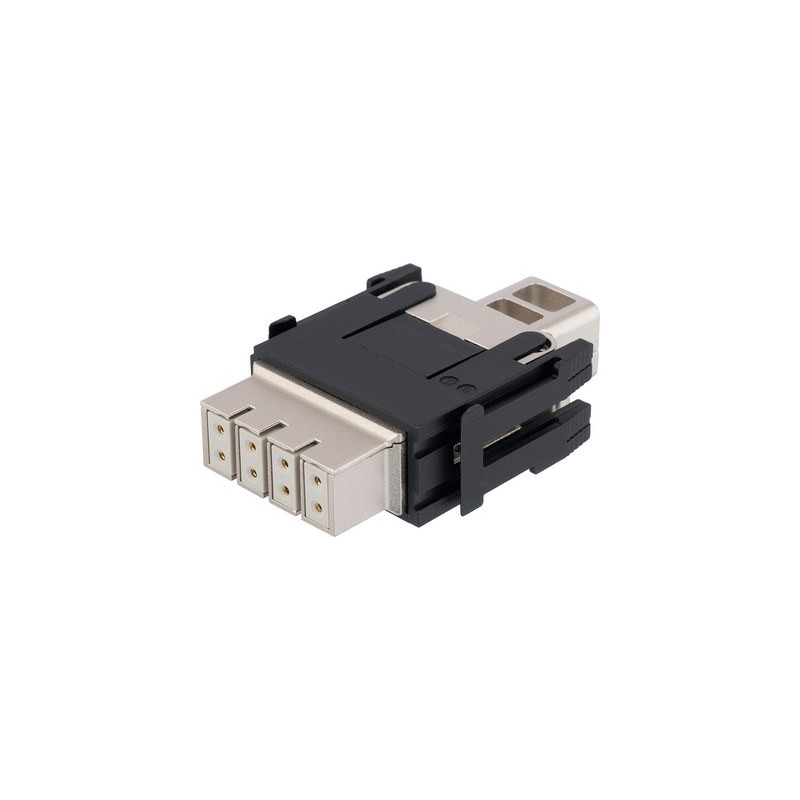

44423292 LAPP EPIC MHB Gigabit Kit Small
44423292
LAPP
EPIC MHB Gigabit Kit Small
EPIC® MH Gigabit Modul
EPIC rectangular
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲EPIC® MH Gigabit Modul
- Modular connector system,compatible with the market standard
- Gigabit module for Ethernet data rates up to 10Gbit/s, Cat.7
proceeds
- Gigabit module, fully shielded, 4 pairs of conductors, in combination with category 7 copper cables you get a transmission rate of a maximum of 10 Gbit/s (IEEE 802.3an compliant)
- The EPIC® MH system is compatible with the market standard
- The combination of different functions in one connector ensures high flexibility
- Railway applications
- Fire protection on railway vehicles: Test according EN 45545-2. Requirement sets R22 and R23. Hazard level HL1, HL2 and HL3
Scope of use
- Construction of machines and installations
- Industry 4.0 Applications
- Robotics industry
- Renewable energy
- Railway Uses / Vehicle Construction
ETS Classification 5
- ETIM 5.0 Class-ID: EC002641
- ETIM Class 5.0 Description: Modular Connector
Nominal voltage
- 50
Voltage test
- 0.8 kV
Rated current in A
- 5
Degree of contamination
- 3
Flammability
- UL94 V-0
Number of contacts
- 8
Material
- Polyamide PA
- Die-cast zinc
Connection cycles
- 500
With VDE approval
- Ul Tested:
UL File Number:E75770
Temperature range
- from -40 °C to +125 °C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
