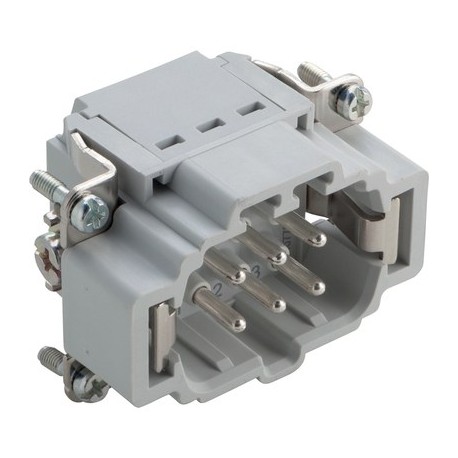

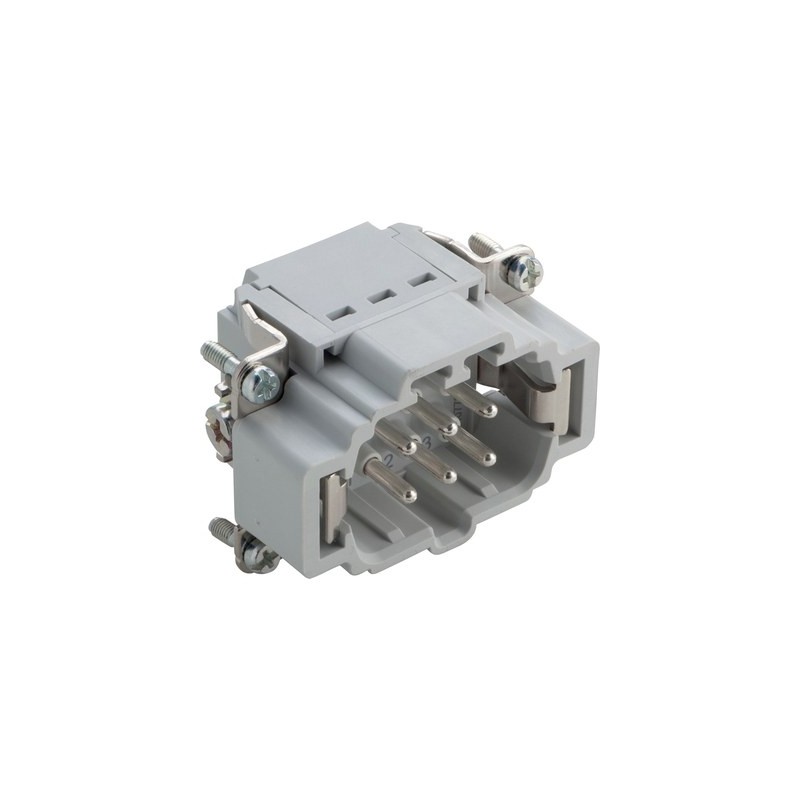

44423201 EPIC H-BE 6 BP LAPP EPIC H-BE 6 BP

Benefits

• Insertion of cores with end sleeves in Push-In inserts gives mounting safety and time saving without any tools
• Easy dismantling and insertion of wires by pushing the orange button
• Test socket for standard 2mm test tip for easy testing of Push-In inserts
• Railway applications
  - Fire protection on railway vehicles: Test according EN 45545-2. Requirement sets R22 and R23. Hazard level HL1, HL2 and HL3
• The EPIC® H-BE series is suitable for applications that require a reliable connection when working with high voltages and currents

Application range

• Mechanical engineering
• Plastics industry
• Light & sound technology
• Railway applications / vehicle construction

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000438
• ETIM 5.0 Class-Description: Contact insert for industrial connectors

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000438
• ETIM 6.0 Class-Description: Contact insert for industrial connectors

Rated voltage (V)

• IEC: 500 VUL: 600 VCSA: 600 V

Rated impulse voltage

• 6 kV

Rated current (A)

• IEC: 16 A
  UL: 13 A
  CSA: 13 A

Pollution degree

• 3

Flammability

• UL94 V-0

Contact resistance

• < 2 mOhm

Contacts

• Copper alloy, hard silver-plated

Number of contacts

• 6 + PE

Termination methods

• Push-In termination: 0.14 - 2.5mm²

Stripping length (mm)

• 10

Material

• PA Polyamid

Cycle of mechanical operation

• 500

Certifications

• UL-tested:
  UL File Number: E75770

Temperature range

• -40°C to +100°C, short-term up to +125°C
