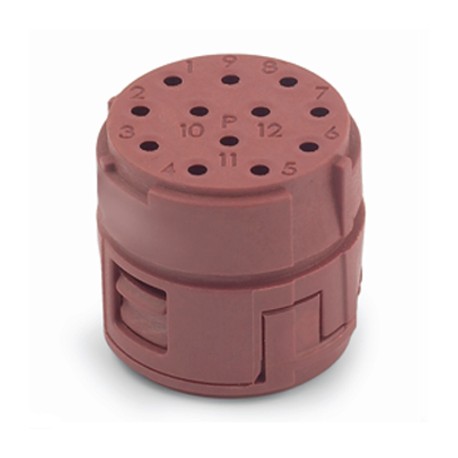

44420122 EPIC SIGNAL M23 12E B D-Sub LAPP EPIC SIGNAL M23 12E B D-Sub (5)
44420122
EPIC SIGNAL M23 12E B D-Sub
LAPP
5
EPIC SIGNAL M23 12E B D-Sub (5)

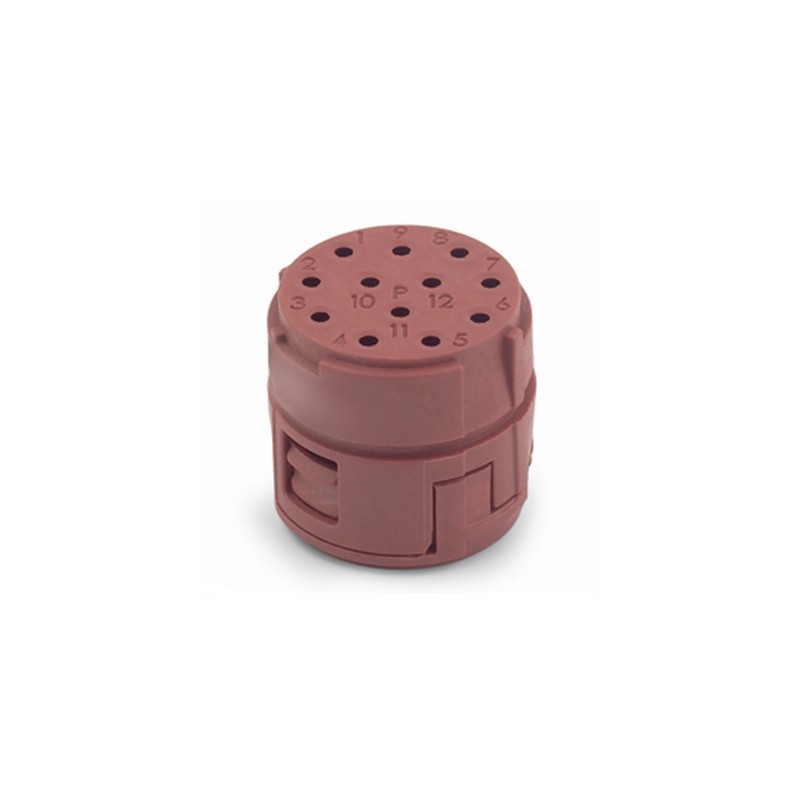

EPIC® SIGNAL M23 Inserts 12 pole D-Sub
Connectors > Contact insert for rectangular connectors
EPIC Round
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲Benefits
- Efficient assembling due to the use of D-Sub contacts-on-reel
Application range
- Plant engineering
- Measurement and control technology
- Apparatus construction
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000438
- ETIM 5.0 Class-Description: Contact insert for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000438
- ETIM 6.0 Class-Description: Contact insert for industrial connectors
Rated voltage (V)
- according to IEC 61984: 100 V
Rated impulse voltage
- 1.5 kV
Rated current (A)
- 4 A
Pollution degree
- 3
Contact resistance
- < 4 mOhm
Contacts
- Partly gold-plated brass
Number of contacts
- 12
- 12*1mm D-Sub contacts
Termination methods
- Crimp termination: 0.08 - 0.56 mm²
Cycle of mechanical operation
- 50
Temperature range
- -25°C up to +125°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 58 Mbytes |
|
| 44420122 EPIC SIGNAL M23 12E B D-Sub 44420122 EN_44420122.pdf | 660 Kbytes |
|
