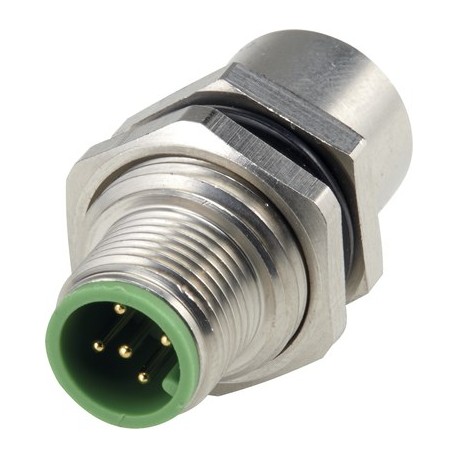

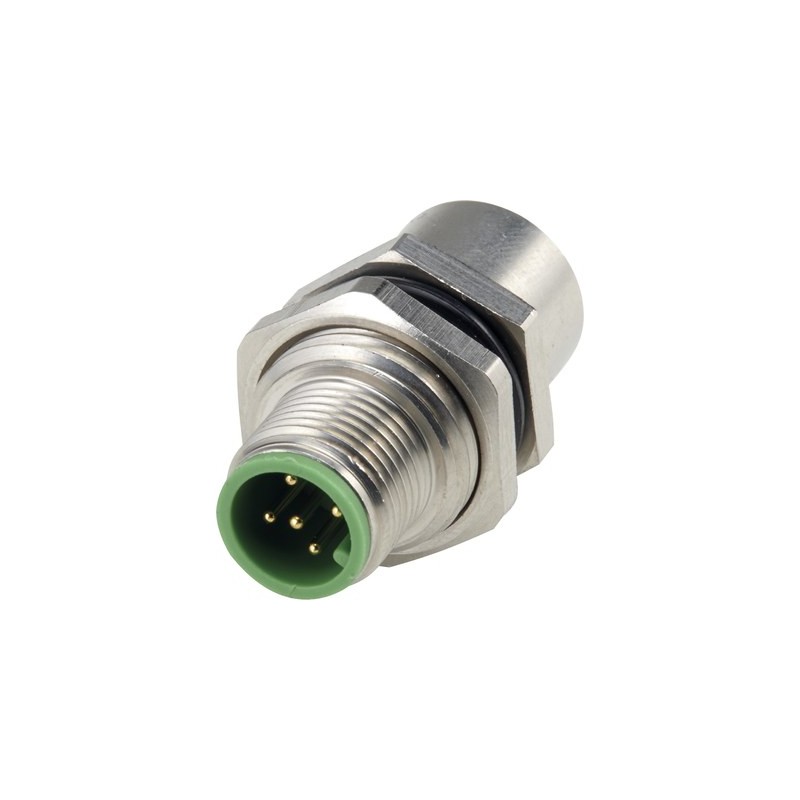

22262020 AB-C5-DSI-M12MS-M12FS-M16-SH LAPP AB-C5-DSI-M12MS-M12FS-M16-SH
22262020
AB-C5-DSI-M12MS-M12FS-M16-SH
LAPP
AB-C5-DSI-M12MS-M12FS-M16-SH
EPIC® DATA CAN M12/M12
Connectors > Circular connector, mounting (without cable)
Fieldbus Modules passive
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲sensor/actuator control cabinet feed through with bipolar/screw mounting (A-coded)
Benefits
- M12 connector on both sides
- Plug & Play for flexible connection solutions
Product features
- For CANopen/DeviceNet applications
- For sensor/actuator cabling
- Bipolar/screw mounting
Product Make-up
- 5-pin control cabinet feed-through, M12 A-coded
- M12 plug on M12 socket
- Screened version
Material
- Contact: CuZn
Contact surface: Au (gold)
Contact carrier: PA 66
Knurl: Nickel-plated brass
Sealing: FKM
Protection rating
- IP 67
Ambient temperature (operation)
- Plug/socket
-25°C to +85°C
Coding
- A - Standard
(CANopen/DeviceNet/CC-Link)
Rated current (A)
- 4 A
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 22262020 AB-C5-DSI-M12MS-M12FS-M16-SH 22262020 EN_22262020.pdf | 439 Kbytes |
|
