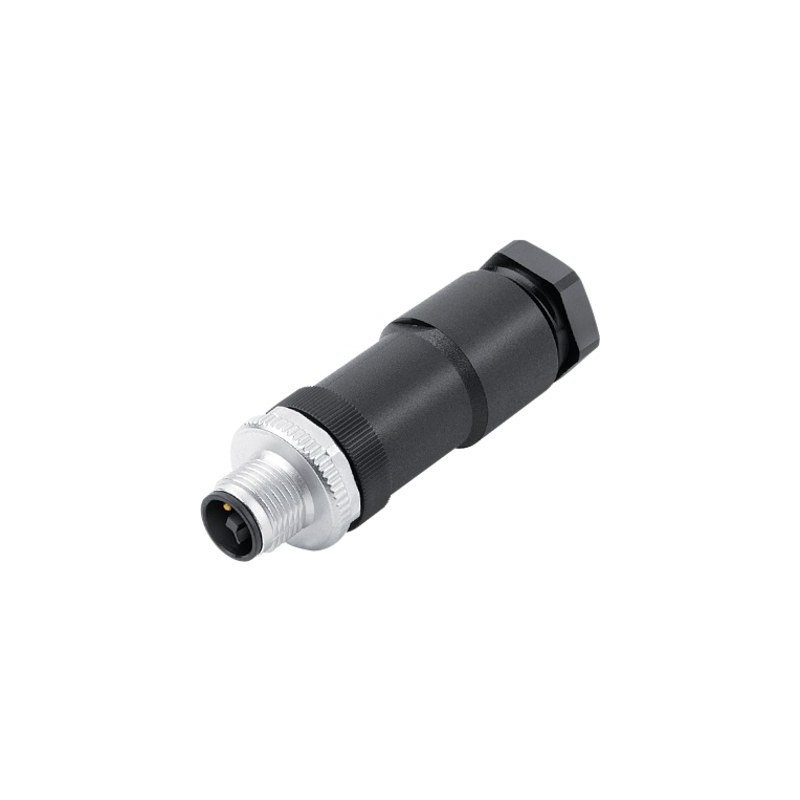

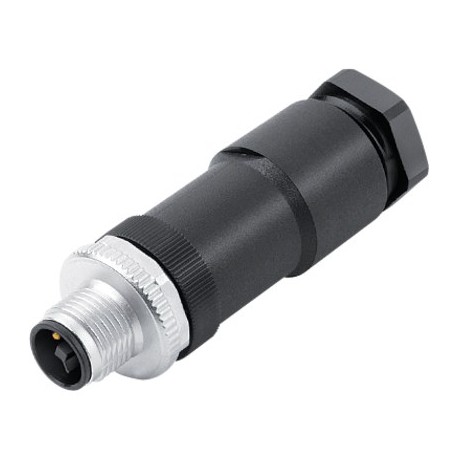

22262012 AB-C4-M12MAT-PG11 LAPP AB-C4-M12MAT-PG11 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

22262012 AB-C4-M12MAT-PG11 LAPP AB-C4-M12MAT-PG11

22262012

AB-C4-M12MAT-PG11

LAPP

AB-C4-M12MAT-PG11

EPIC® POWER M12 60V

More details


Connectors > Circular connector for field assembly (industrial connector)

Fieldbus Modules passive

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total: $22.34
Unit price: $22.34
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



M12 Power connector, mountable, plug/socket, straight/angled, for conductor cross-section 0,75-1,5 mm²

DC high-power connector
- 60 VDC / 12 A

Benefits

  • Compact and standardized M12 design saves space and costs
  • Fault proof connection through M12 T coding of the connector face
  • Low voltage drop
  • Safety use in field environment by high protection class

Application range

  • Power Supply for small devices
  • Tool shop
  • Wiring of machines, tools, devices, appliances and control cabinets
  • Suitable for use in measuring, control and regulating circuits

Product features

  • Robust M12 circular connector with screw connection and knurled srew
  • Screw-on terminals for different conductors

Norm references / Approvals

  • UL File Number: E249137

Product Make-up

  • 4-pin: bn (1), wh (2), bu (3), bk (4)
  • High quality gold-plated contacts
  • For screw contacts: 0,75 mm² - 1,5 mm² (AWG 18 - AWG 16)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002062
  • ETIM 5.0 Class-Description: Sensor-actuator connector

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002062
  • ETIM 6.0 Class-Description: Sensor-actuator connector

Material

  • Contact: CuZn
    Contact surface: Au (gold)
  • Knurl: Zinc die-cast, nickel-plated
    Gripping body: PA

Protection rating

  • IP 67

Ambient temperature (operation)

  • Plug/socket -40°C to +85°C

Coding

  • T - Power

Rated current (A)

  • 12 A

Datasheet - PDF
