> LAPP>Fieldbus Modules passive>22260795 AB-DN-M12MS-0,3PUR-M12FS LAPP AB-DN-M12MS-0,3PUR-M12FS
Previous Product Next Product
22260795 AB-DN-M12MS-0,3PUR-M12FS LAPP AB-DN-M12MS-0,3PUR-M12FS View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

22260795 AB-DN-M12MS-0,3PUR-M12FS LAPP AB-DN-M12MS-0,3PUR-M12FS

22260795

AB-DN-M12MS-0,3PUR-M12FS

LAPP

AB-DN-M12MS-0,3PUR-M12FS

UNITRONIC® BUS CAN M12-M12

More details


Sensors > Sensor-actuator patch cord

Fieldbus Modules passive

* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total price: $45.96
Unit price: $45.96

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲

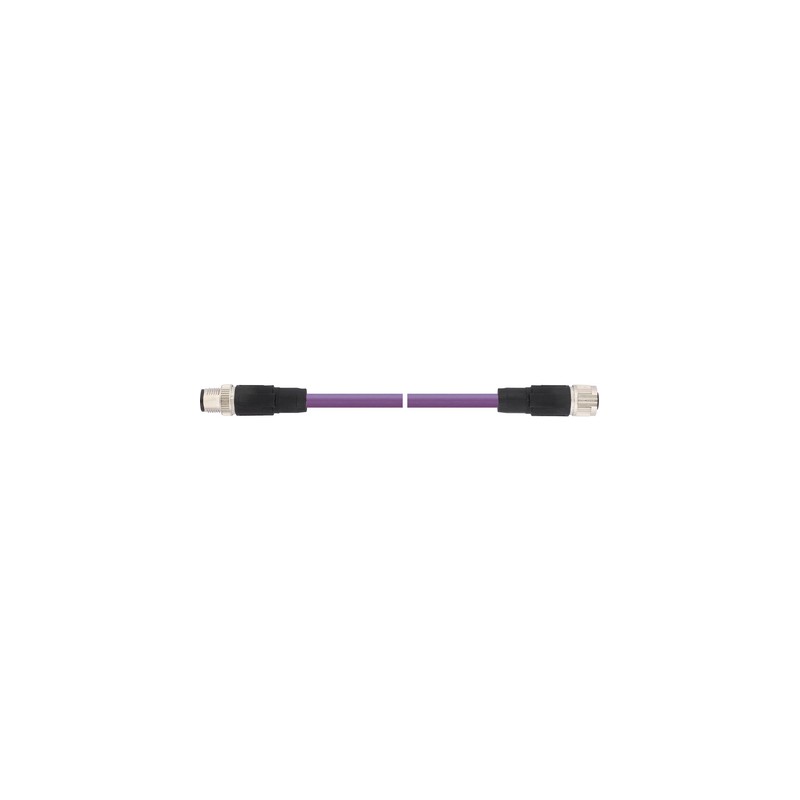

Busystemcable M12, DeviceNet, CANopen, straight plug M12 on straight socket M12, A-coded, screened, PUR halogenfree, suitable for drag chain

Other types are available at
www.lappgroup.com/assemblyfinder
or on request

Benefits

  • Cost-effective, efficient wiring of fieldbus and sensor/ actuator installations
  • Space-saving due to compact dimensions
  • Fast and easy error tracking
  • Robust design

Application range

  • Mechanical and plant engineering

Product features

  • 5-core DeviceNet/CANopen cable, shielded
  • M12 connector, A-coded with quick-locking system
  • Suitable for drag chains
  • Including tag carrier

Norm references / Approvals

  • UL-AWM-Style 21198 (80 °C / 300 V)

Product Make-up

  • Signal line: 2 x 0.25 mm²
    Power supply: 2 x 0.34 mm²
    Drain wire: 1 x 0.34 mm²
  • Core colours: red/black, blue/white
  • Outer sheath: PUR halogen-free, violett
  • Outer diameter: 6.7 mm
  • Shielded version

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001855
  • ETIM 5.0 Class-Description: Sensor-actuator patch cord

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001855
  • ETIM 6.0 Class-Description: Sensor-actuator patch cord

Material

  • Contact: CuSn
    Contact surface: Ni/Au
    Knurl: Zinc die-cast, nickel-plated
    Gripping body: TPU, flame-retardant, self-extinguishing

Minimum bending radius

  • Flexing: 70 mm

Protection rating

  • IP65/IP67

Ambient temperature (operation)

  • Plug/socket -25°C to +90°C
  • Fixed installation -40°C to +80°C
    Flexing -20°C to +70°C

Coding

  • A-standard

Rated current (A)

  • 4 A

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE LAPP EN.pdf 58 Mbytes
22260795 AB-DN-M12MS-0,3PUR-M12FS 22260795 EN_22260795.pdf 179 Kbytes 22260795 AB-DN-M12MS-0,3PUR-M12FS 22260795 EN_22260795.pdf
