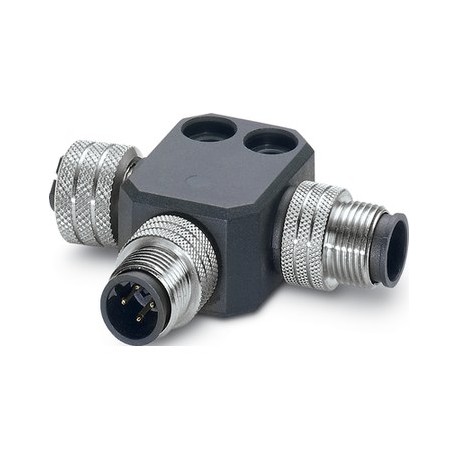

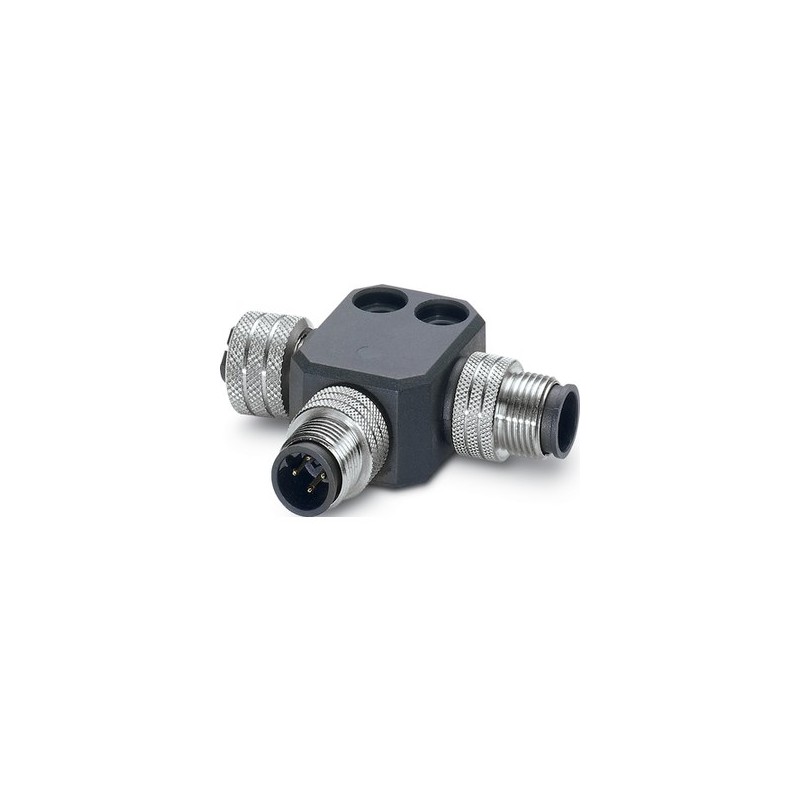

22260761 AB-C2-M12T-2XM12FS PB LAPP M12 T distributor, shielded for PROFIBUS
22260761
AB-C2-M12T-2XM12FS PB
LAPP
AB-C2-M12T-2XM12FS PB
Fieldbus Modules passive
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲Compact and full-industry-standard M12 (B-coded) T-connector for univeral use within PROFIBUS networks. For use in harsh environments (IP67).
Fully suitable for industrial use
Benefits
- Cost efficient and rational wiring for PROFIBUS installations
- Space-saving due to compact dimensions
- Robust design
Application range
- Mechanical and plant engineering
Product features
- For PROFIBUS stubs
- Screened version
Product Make-up
- 4-pin PROFIBUS T-connector
- M12 plug to M12 plug and M12 socket
Classification ETIM 5
- ETIM 5.0 Class-ID: EC002585
- ETIM 5.0 Class-Description: Passive sensor-actuator interface
Classification ETIM 6
- ETIM 6.0 Class-ID: EC002585
- ETIM 6.0 Class-Description: Passive sensor-actuator interface
Material
- Contact: CuSn
Contact surface: Ni/Au
Contact carrier: PUR
Knurl: Nickel-plated brass
Gripping body: PUR
Sealing: FKM
Protection rating
- IP 67
Ambient temperature (operation)
- Plug/socket
-25°C to +80°C
Coding
- B - inverse
Rated current (A)
- 4 A
Datasheet - PDF
