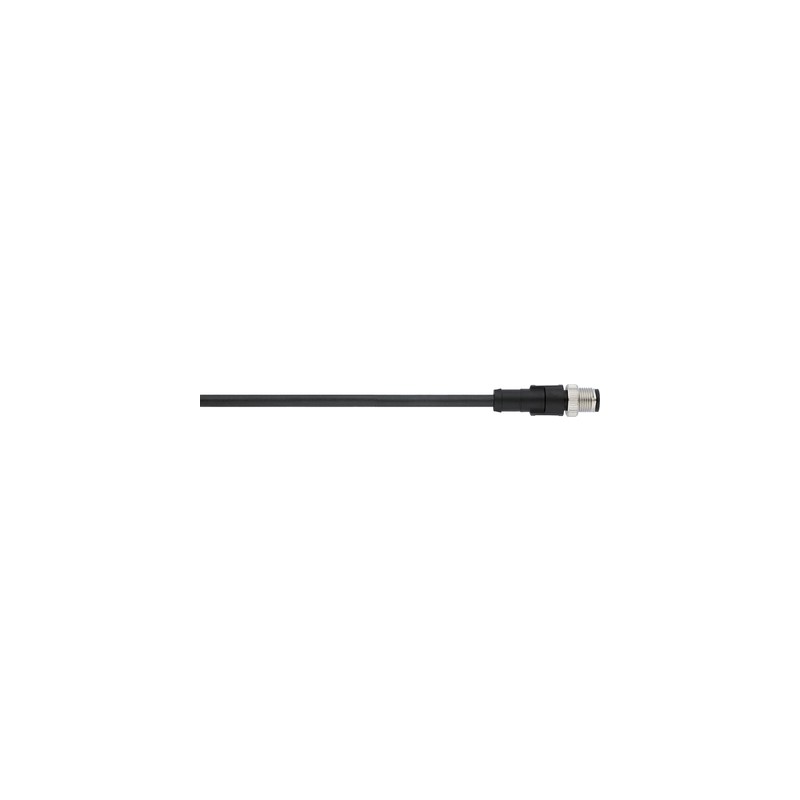

22260255 AB-C3-10,0PUR-M12FA-2L LAPP AB-C3-10,0PUR-M12FA-2L

Benefits

• Cost-saving due to quick and easy installation
• Space-saving due to compact dimensions
• Fast and easy error tracking
• Integrated vibration protection (mechanical lock-in)
• Gold-plated contacts for low transfer resistance

Application range

• For increased mechanical stress and harsh operating conditions

Product features

• UV-resistant
• Good resistance to oils and chemicals
• PWIS and PVC free
• Suitable for drag chains
• Including tag carrier

Norm references / Approvals

• Halogenfree according to DIN VDE 0472
• UL File Number: E249137
• Flame-retardant according to UL 1581 FT-2

Product Make-up

• wire cross-section: 0,34 mm²
  (8-pin: 0,25 mm²)
• Colour-code:
  3-pin: bn (1), bu (3), bk (4)
  4-pin: bn (1), wh (2), bu (3), bk (4)
  5-pin: bn (1), wh (2), bu (3), bk (4), gn/ye (5)
  8-pin: wh (1), bn (2), gn (3), ye 4), gy (5), pk (6), bu (7), rd (8)
• Outer sheath: PUR, black

Classification ETIM 5

• ETIM 5.0 Class-ID: EC001855
• ETIM 5.0 Class-Description: Sensor-actuator patch cord

Classification ETIM 6

• ETIM 6.0 Class-ID: EC001855
• ETIM 6.0 Class-Description: Sensor-actuator patch cord

Material

• Contact: CuSn
  Contact surface: Ni/Au
  Knurl: Zinc die-cast, nickel-plated
  Gripping body: TPU, flame-retardant, self-extinguishing

Minimum bending radius

• Fixed installation: 5 x outer diameter
• Flexing: 10 x outer diameter

Protection rating

• IP65/IP67

Ambient temperature (operation)

• Plug/socket -25°C to +90°C
• Fixed installation -40°C to +80°C
  Flexing -25°C to +80°C

Coding

• A-standard

Rated current (A)

• 4 A
  2 A (8-pin)
