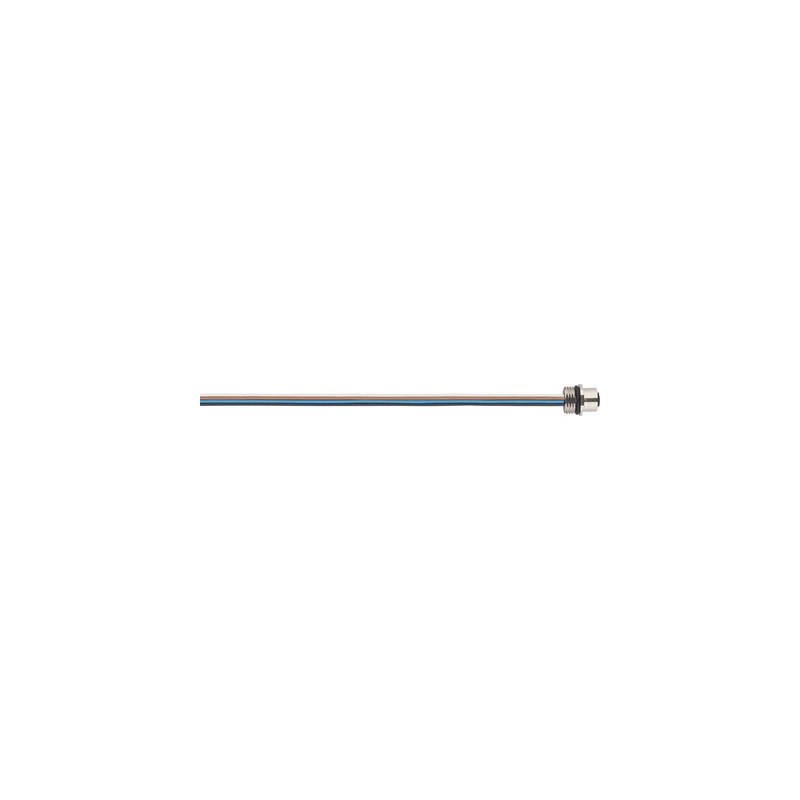

22260100 AB-C3-M8MS-0,5 LAPP AB-C3-M8MS-0,5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

22260100 AB-C3-M8MS-0,5 LAPP AB-C3-M8MS-0,5

22260100

AB-C3-M8MS-0,5

LAPP

AB-C3-M8MS-0,5

EPIC® SENSOR Flush-type M8

More details


Connectors > Circular connector, mounting (with cable)

Fieldbus Modules passive

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total: $16.06
Unit price: $16.06
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



sensor/actuator flush-type connectors with TPE single strands for front-mounting (A-coded)

Benefits

  • Flexible connection solutions for individual device concepts
  • Simple installation in devices (e.g. cabinet)

Application range

  • Connection of enclosures and cabinets

Product features

  • M8 fastening thread
  • Designs for front mounting
  • PWIS-free

Product Make-up

  • TPE single strands, l = 0.5 m
  • Core cross section: 0.25 mm2

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002061
  • ETIM 5.0 Class-Description: Sensor-actuator connector chassis

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002061
  • ETIM 6.0 Class-Description: Sensor-actuator connector chassis

Material

  • Contact: CuSn
    Contact surface: Ag

Protection rating

  • IP 67

Ambient temperature (operation)

  • Plug/socket
    -25°C to +85°C

Coding

  • A-standard

Rated current (A)

  • 4 A

Datasheet - PDF
