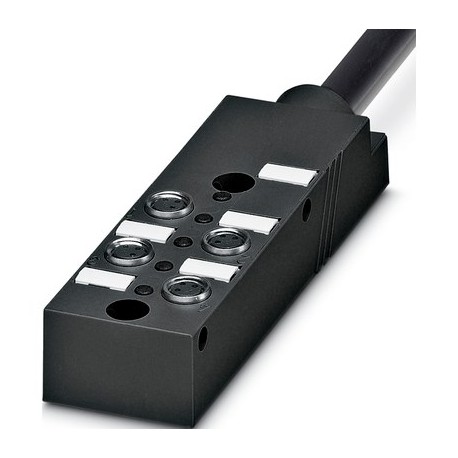

22260036 AB-B8-M8L-8-M16 LAPP AB-B8-M8L-8-M16
22260036
AB-B8-M8L-8-M16
LAPP
AB-B8-M8L-8-M16
Distribution Box M8
Sensors > Passive sensor-actuator interface (without cable)
Fieldbus Modules passive
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info

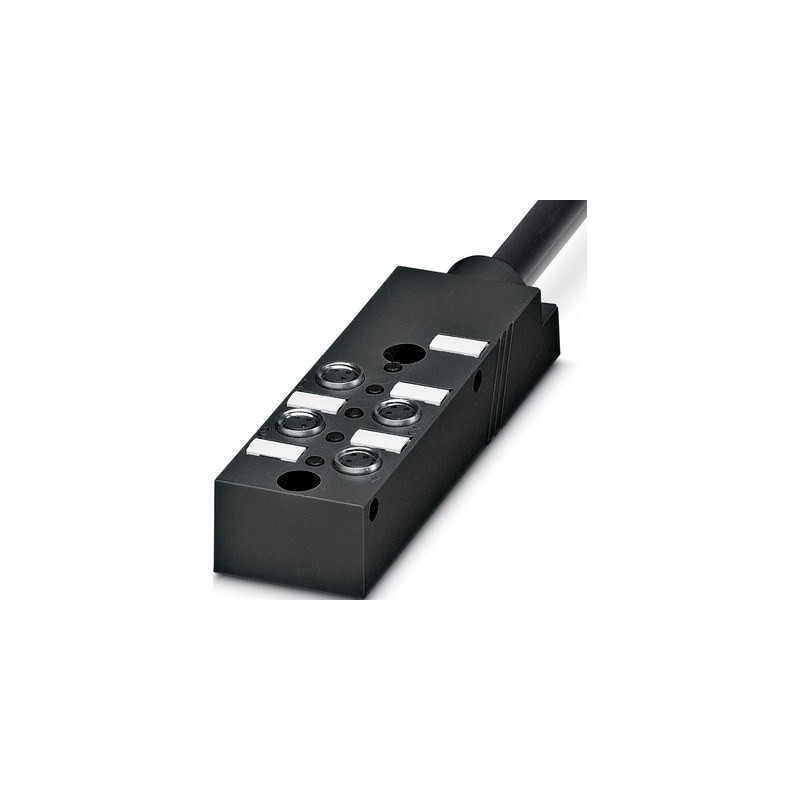

▲Passive distribution boxes with M8 slots and fixed installed master cable in a fully sealed housing for a structured wiring of sensors and actuators
Benefits
- Cost efficient and rational wiring of sensors and actuators
- Instead of numerous individual conductors,
one master cable is laid to the control unit - Hybrid cable for signal and power transmission
- There are no assembly costs
as the master cable
is already pre-assembled - Suitable for drag chains
Product features
- Single-occupied boxes
- With fixed master cable or M12/M16 socket
- LEDs indicate the operating mode of the distributor and the status of the sensors
- PWIS-free
Norm references / Approvals
- E-File number: E75770
Product Make-up
- Core insulation: PVC
- Outer sheath: PUR, black
Classification ETIM 5
- ETIM 5.0 Class-ID: EC002585
- ETIM 5.0 Class-Description: Passive sensor-actuator interface
Classification ETIM 6
- ETIM 6.0 Class-ID: EC002585
- ETIM 6.0 Class-Description: Passive sensor-actuator interface
Protection rating
- IP65/IP67
Ambient temperature (operation)
- -30°C to +80°C
- Fixed installation -40°C to +90°C
Flexing -5°C to 80°C
Current rating per slot
- 2 A
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 58 Mbytes |
|
| 22260036 AB-B8-M8L-8-M16 22260036 EN_22260031.pdf | 450 Kbytes |
|
