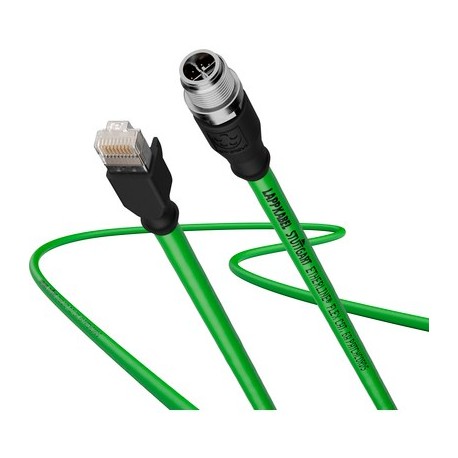

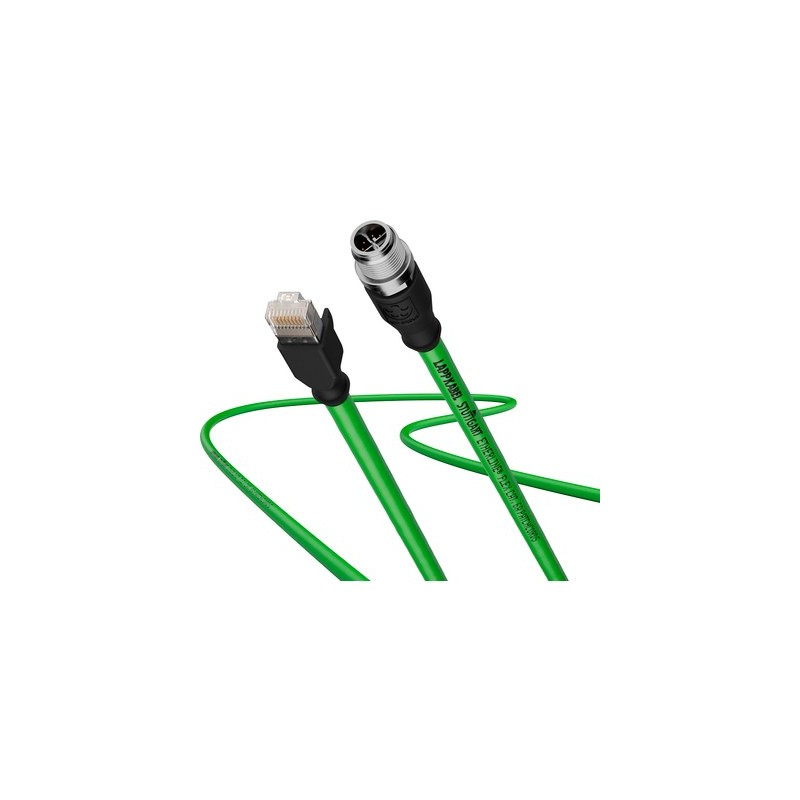

2172351 LAPP ETHERLINE connection cable® Cat. 6A Flex

proceeds

• Connection cable connected to one side or both; saves installation time and reduces or eliminates the potential for on-site delivery errors.
• Aptro for Ethernet applications with transmission rates up to 10 Gbit/s at 60 m thanks to Cat.6A compliance.
• Available with RJ45 or M12 connectors.
  The RJ45 connector is compact and allows use in equipment with a very high port density, while the integrated vibration protection of the M12 connector is useful in shock and vibration applications.
• Ideal protection against electromagnetic interference thanks to the shielding of pairs with aluminum foil and a copper braid as a general shielding (S / FTP).
• Halogen-free cover and conductor insulation mix to meet special fire protection requirements.

Scope of use

• For structured cabling of buildings according to EN 50173 and ISO/IEC 11801.
• Also suitable for EtherCAT and EtherNET/IP applications.
• In accordance with the rules for its application in buses (fire behaviour test according to UNECE-R 118 for vehicles of category M3 (II and III)).
• It can be used in dry, humid environments and especially in adverse external conditions and with the presence of oils.
• The outer shell of PUR is resistant to lubricants based on mineral oils and chemicals.

Product features

• Meets requirements, compliant with CAT.6A, ISO/IEC 11801 and EN 50173
• 4 pairs: 10/100/1000 Mbit/s for Industrial Ethernet

Product composition

• Braided conductor, 4x2x AWG26/7
• The formation in twisted pairs allows an almost interference-free operation.
• High-quality double shielding ensures high transmission safety in areas subject to electromagnetic charges
• Outer coating made of halogen-free PUR compound.
• Pre-connected connection cable with connectors designed according to the regulations
• Color: green (similar to RAL 6018)

ETS Classification 5

• ETIM 5.0 Class-ID: EC002599
• ETIM Class 5.0 Description: Industrial Copper Hose (Twisted Pair)

Minimum radius of curvature

• Fixed installation: 4 x outside diameter
• Bending: from 10 x outer diameter

Degree of protection:

• M12 -IP67
• RJ45 - IP20

Codification

• M12: Standard X

Temperature range

• Flexible: -30°C to +80°C (M12)
• Flexible: -40°C to +70°C (RJ45)
