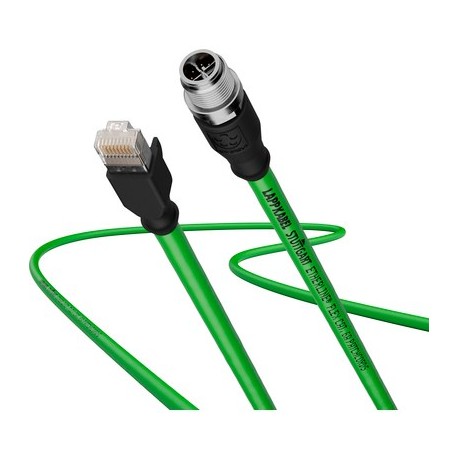

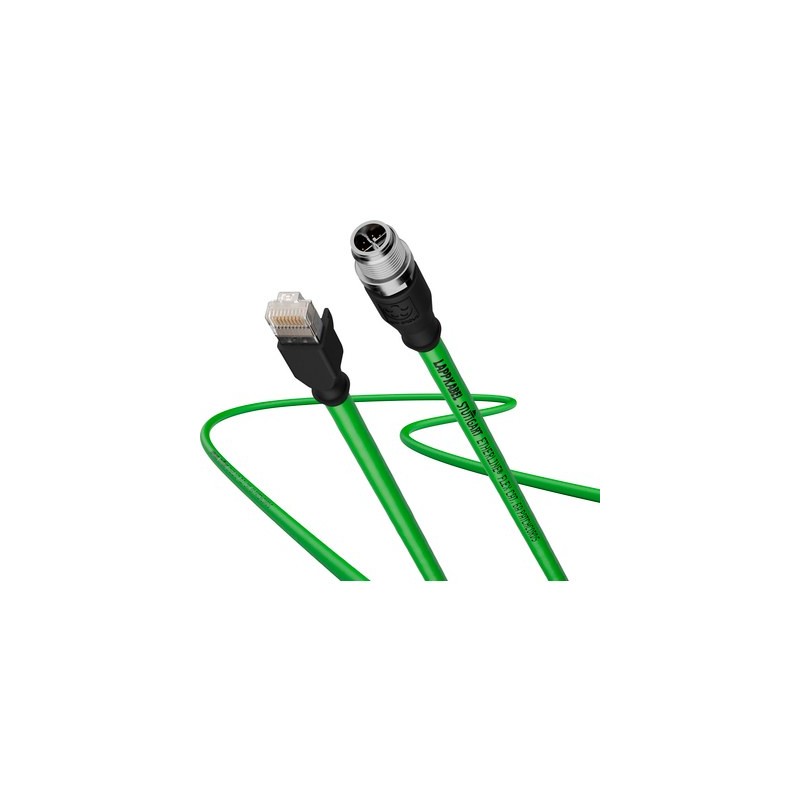

2172347 LAPP ETHERLINE® Cat.6A Flex patch cables

Benefits

• Connecting cable assembled on one or on both sides saves installation time and reduces or eliminates the potential for on-site assembly errors.
• Suitable for Ethernet applications information exchange at up to 10 Gbit/s over 60 m thanks to Cat.6A Ethernet.
• Available with RJ45 or M12 connectors. The slim RJ45 connector enables use in devices with a very high port density, while the integrated vibration protection of the M12 connector is useful in applications with shock and vibrations.
• Ideal protection against electromagnetic interference thanks to pair screening with aluminium compound foil and copper braiding as overall screening (S/FTP).
• Halogen-free core insulation and sheath compound to meet special fire protection requirements.

Application range

• For structured building cabling according to EN 50173 and ISO/IEC 11801.
• Also suitable for EtherCAT and EtherNET/IP applications.
• Compliant with standards for use in buses (fire behaviour test according to UNECE-R 118 for vehicles of category M3 (II and III)).
• Can be used in dry, damp and especially in harsh and oily environments.
• The PUR outer sheath is insensitive to mineral oil-based lubricants and is chemically resistant in many cases.

Product features

• Meets the requirements according to CAT.6A, ISO/IEC 11801 and EN 50173
• 4pair: 10/100/1000 Mbit/s for Industrial Ethernet

Product Make-up

• Braided conductor, 4x2x AWG26/7
• Twisted pair construction permits largely interference-free operation (decoupling).
• High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference
• Outer sheath: PUR compound, halogen-free
• Pre-assembled patchcord with norm-compliant connectors
• Colour: green (based on RAL 6018)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC002599
• ETIM 5.0 Class-Description: Patch cord copper (twisted pair) industry

Minimum bending radius

• Fixed installation: 4 x outer diameter
• Flexing: up from 10 x outer diameter

Protection rating

• M12 -IP67
• RJ45 - IP20

Coding

• M12: X-Standard

Temperature range

• Flexing: -30°C to +80°C (M12)
• Flexing: -40°C to +70°C (RJ45)
