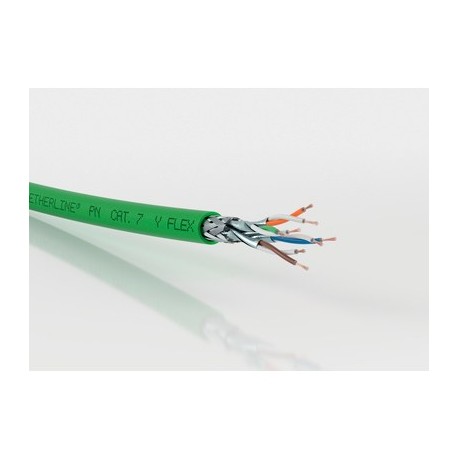

2170608 LAPP ETHERLINE PN CAT.7 Y FLEX A

Benefits

• Can be used in dry or damp rooms
• Screened against interference
• Can be used for Industrial Ethernet in harsh industrial environments
• 4pair: 100Mbit/s up to 10 Gbit/s for Industrial Ethernet

Application range

• for industrial secondary and tertiary cabling according to EN 50173-3
  ISO/IEC 24702
• Wiring of machines, tools, devices, appliances and control cabinets
• suitable for EtherCAT and EtherNet/IP applications

Product features

• FRNC Version: Halogene free and flame retardant
• The oil-resistant PVC sheath enables usage in industrial environments
• High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference

Norm references / Approvals

• Flame retardant acc. to IEC 60332-1-2
• UL approvals see data sheet

Product Make-up

• 7-wire bare stranded copper conductor
• Core insulation: foamed polyethylen (PE)
• S/FTP: copper braid as overall screening and pair screening with aluminium compound foil
• Colour: green (based on RAL 6018)

Classification ETIM 5

• ETIM 5.0/6.0 Class-ID: EC000830
• ETIM 5.0/6.0 Class-Description: Data cable

Peak operating voltage

• (not for power applications) 125 V

Minimum bending radius

• Fixed installation: 4 x outer diameter
• Flexing: 8 x outer diameter

Test voltage

• Core/core: 1500 V rms
• Core/screen: 1500 V eff.

Characteristic impedance

• 100 Ω ± 5 Ohm (> 1 MHz)

Temperature range

• Fixed installation: -30°C to +80°C
• Occasional flexing: -5°C to +50°C
