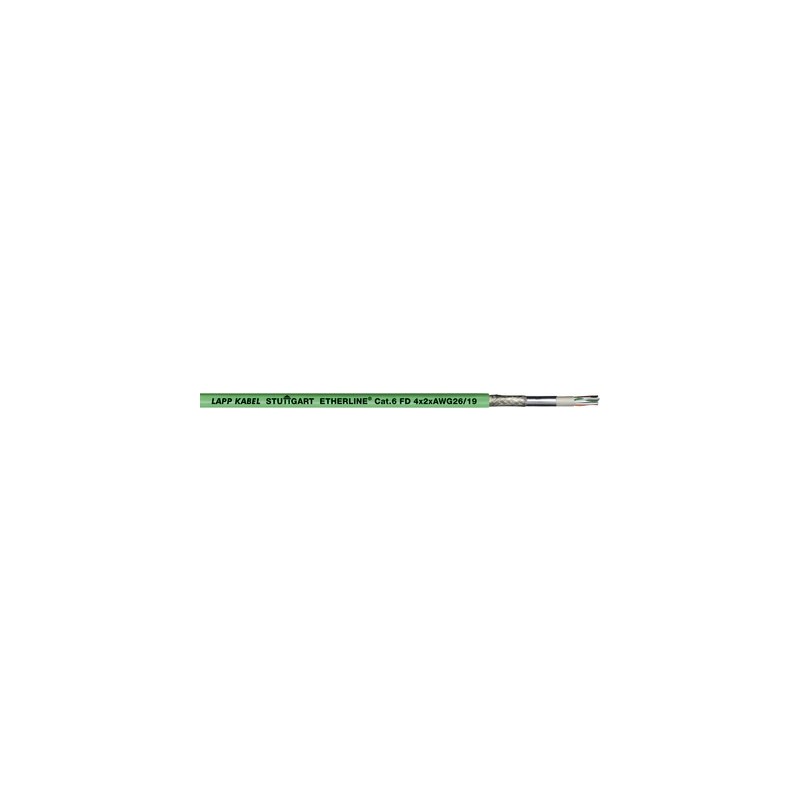

2170488 ETHERLINE FD P CAT.6 4X2XAWG26 LAPP ETHERLINE FD P CAT.6 4X2XAWG26
2170488
ETHERLINE FD P CAT.6 4X2XAWG26
LAPP
100 m.
ETHERLINE FD P CAT.6 4X2XAWG26
ETHERLINE® CAT.6 FD
Cables > Data and communication cable
Etherline Industrial cabling
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Often bought together
▲Best sellers
▲More info
▲Industrial Ethernet cable Cat.6 for high flexible use; PUR (UL-approval) outer sheath material, design 4 x2xAWG26/19
Cat.6 for drag chain
Benefits
- Highly flexible data cable with PUR outer sheath, meets the highest service life requirements, even under harsh climatic conditions
- Premium screening against electromagnetic interference
Application range
- For use in drag chains and moving machinery parts in dry or damp rooms
- Only for patch cable applications
(max. 60 m) - suitable for EtherCAT and EtherNet/IP applications
- Plant engineering, machinery manufacturing
- 4pair: 10/100/1000 Mbit/s for Industrial Ethernet
Product features
- PUR outer sheath is resistant to most oils and hydraulic fluids
- Cat.6 for drag chain
- min. 1 million bending cycles in the drag chain
Norm references / Approvals
- UL/CSA type CMX (UL 444)
- Flame retardant acc. to IEC 60332-1-2
Product Make-up
- Stranded conductor, tinned
- AWG 26 (19-wire)
- PP core insulation
- Inner sheath: thermoplastic copolymer (FRNC)
- SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening
- PUR outer sheath, halogen-free
- Colour: green (based on RAL 6018)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000830
- ETIM 6.0 Class-Description: Data cable
Peak operating voltage
- max. 100 V (not for power applications)
Minimum bending radius
- Fixed installation: 4 x outer diameter
- Flexing: 7.5 x outer diameter
Test voltage
- 700 V
Characteristic impedance
- nom. 100 Ω acc. to IEC 61156-6
Temperature range
- Fixed installation: -40°C to +80°C
- Flexing: -30°C to +70°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 2170488 ETHERLINE FD P CAT.6 4X2XAWG26 2170488 EN_2170488.pdf | 352 Kbytes |
|
