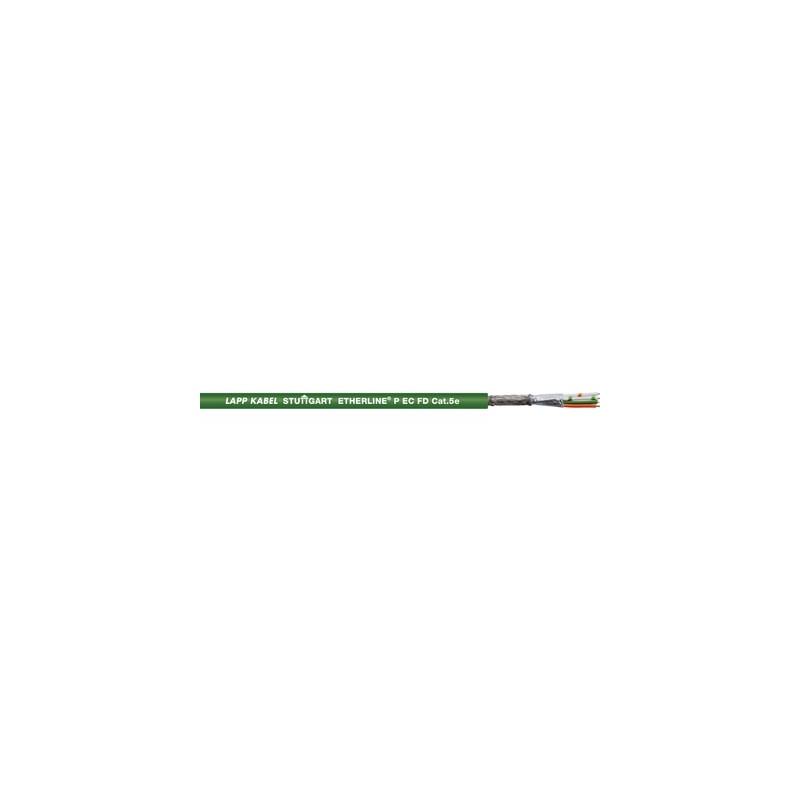

2170433 ETHERLINE P EC FD Cat.5e LAPP ETHERLINE P EC FD Cat.5e

proceeds

• Can be used in harsh environments with Industrial Ethernet
• Suitable for use in dry or wet premises.
• Reduced space requirements

Scope of use

• Valid for EtherCAT and EtherNet/IP applications
• For extra-flexible use (energy chains, moving machine parts)
• Many applications with Industrial Ethernet, e.g.: EtherCat, i.e. fixed installation, for flexible and highly flexible applications
• For internal wiring of electrical and electronic installations in panels and cabinets
• For hoses (max. 60 m)

Product features

• Meets the requirements according to Cat. 5e and class D
• High-quality double shielding ensures high transmission safety in areas subject to electromagnetic charges

Reference Standards / Approvals

• UL/CSA CMX version in accordance with UL 444 and CSA C22.2 No. 214-02
• Non-flame propagator, according to UL VW1/CSA FT1.
• Halogen-free according to VDE 0472-815

Product composition

• Bare copper conductor cord, 0.14 mm² (19x 0.10), (26AWG)
• Polyethylene (PE) insulation
• Insulation color codes: orange/white-orange; green/white-green
• Star quadrant
• SF/UTP: global tinned copper braid display and aluminium tape
• Outer coating made of halogen-free PUR compound.
• Color: green (similar to RAL 6018)

ETS Classification 5

• ETIM 5.0 Class-ID: EC000830
• ETIM Class 5.0 Description: Data Cable

ETTIM Rating 6

• ETIM 6.0 Class ID: EC000830
• ETIM 6.0 Class-Description: Data Cable

Working crest tension

• max. 100 V (not suitable for power use)

Minimum radius of curvature

• Fixed installation: 4 x outside diameter
• Flexible use: 16 x outer diameter

Characteristic impedance

• Nom. 100 Ohm according to IEC 61156-6

Temperature range

• Fixed installation: -40°C to +80°C
• Flexible use: -30°C to +50°C
