2170431 ETHERLINE P EC FLEX Cat.5e LAPP ETHERLINE P EC FLEX Cat.5e
2170431
ETHERLINE P EC FLEX Cat.5e
LAPP
500 m.
ETHERLINE P EC FLEX Cat.5e
Cables > Data and communication cable
Etherline Industrial cabling
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲The LAN cable is suitable for Ethernet in demanding industrial environments and features a space-saving design. It can be used in wet and dry premises.
- For EtherCAT applications
- Cat.5e-Performance
- Only for patch cable applications
(max. 60 m)
Benefits
- Can be used for Industrial Ethernet in harsh industrial environments
- Can be used in dry or damp rooms
- Lower space requirement
Application range
- suitable for EtherCAT and EtherNet/IP applications
- For flexible applications
(7-wire stranded conductor) - Many applications with Industrial Ethernet, i.e. fixed installation and flexible use.
- For internal wiring of electric and electronic equipment in switch cabinets
- Only for patch cable applications
(max. 60 m)
Product features
- PUR (Polyurethane) Version with increased robustness, UV- resistance and halogen free
- High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference
Norm references / Approvals
- Certification: UL/CSA type CMX in accordance with UL 444 and CSA C22.2 no. 214
- Flame-retardant according to UL VW1/CSA FT1

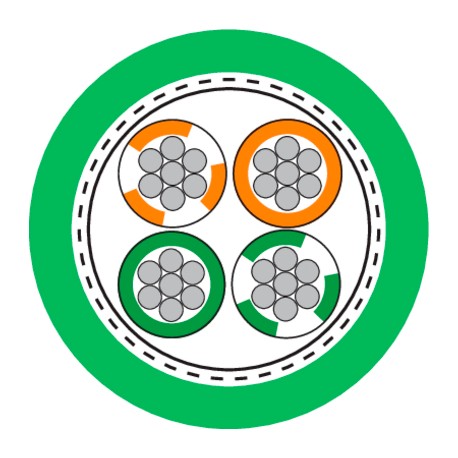

Product Make-up
- Stranded tinned 7-wire conductor
- Core insulation: PE
- insulation colour-codes: orange/white-orange; green/white-green
- Star quad
- SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening
- PVC or PUR jacket material
- Colour: green (based on RAL 6018)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000830
- ETIM 6.0 Class-Description: Data cable
Peak operating voltage
- max. 100 V (not for power applications)
Minimum bending radius
- Fixed installation: 4 x outer diameter
- Flexing: 8 x outer diameter
Characteristic impedance
- nom. 100 Ω acc. to IEC 61156-5
Temperature range
- Cable with PVC jacket
Fixed installation: -30°C to +80°C
Flexing: -5°C bis +50°C - Cable with PUR jacket
Fixed installation: -40°C to +80°C
Flexing:-30°C to +50°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 2170431 ETHERLINE P EC FLEX Cat.5e 2170431 EN_2170431.pdf | 435 Kbytes |
|
