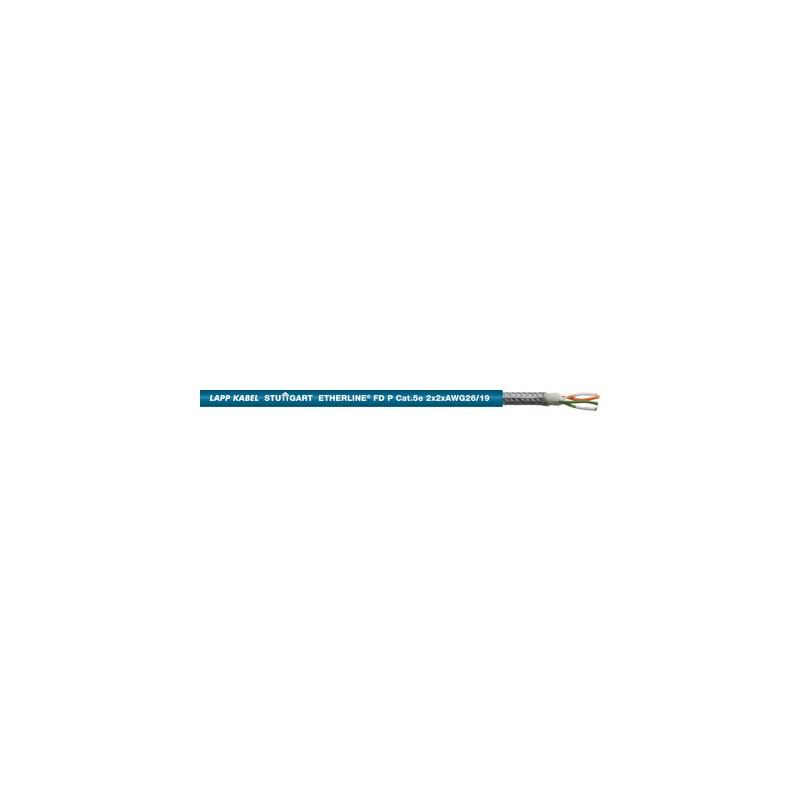

2170289 ETHERLINE FD P Cat.5e 2x2x26/19AWG LAPP Ethernet cable Category 5e, Class D for use in drag chain ap..

Benefits

• Seamless communication from the sensor/actuator level to the Internet
• Screened against interference
• Can be used in dry or damp rooms
• Industrial use
• cables with PUR jacket: 1000 V UL- rating for installation next to power cables

Application range

• 2pair: 10/100 Mbit/s for Industrial Ethernet
• 4pair: 10/100/1000 Mbit/s for Industrial Ethernet
• Only for patch cable applications
  (max. 60 m)
• suitable for EtherCAT and EtherNet/IP applications
• Power chain applications

Product features

• Premium screening against electromagnetic interference
• Halogen-free outer sheath
• cables with PUR jacket: 1000 V UL- rating for installation next to power cables

Norm references / Approvals

• UL AWM Style 21576
• Flame-retardant according IEC 60332-1-2
• Halogen-free according to VDE 0472-815

Product Make-up

• Bare stranded copper wire, 26AWG (19 x 0.10), (0.14 mm²)
• Inner sheath: thermoplastic elastomer, halogen-free
• 2 or 4-pair version
• Screening: wrapped with braided tinned-copper wires
• PUR outer sheath
• Colour: water blue (similar to RAL 5021)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000830
• ETIM 5.0 Class-Description: Data cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000830
• ETIM 6.0 Class-Description: Data cable

Peak operating voltage

• (not for power applications) 125 V

Minimum bending radius

• Fixed installation: 8 x outer diameter
• Flexing: 15 x outer diameter

Test voltage

• Core/core: 1000 V
• Core/screen: 500 V

Characteristic impedance

• nom. 100 Ω acc. to IEC 61156-5

Temperature range

• Fixed installation: VDE -30°C to +80°C; UL/CSA -30°C to +80°C
  Flexing: VDE -5°C to +50°C; UL/CSA -5°C to +80°C
